| Features |
Description |
| Device Type |
FTTR / FTTH Flat 2-Core Non-Metallic Fiber Optic Cable (Distribution Cable) |
| Brand / Series |
LINK (Interlink) / Double-Q Series (Non-Metallic FTTH/FTTR Solution) |
| Fiber Type |
Single-Mode Fiber (ITU-T G.657A2, Fully Compatible with G.652D) |
| Core Count |
2 Core (2C Structure) |
| Cable Construction |
Flat Profile Distribution Cable with Non-Metallic Strength Members (FRP) |
| Jacket Material |
Flame Retardant Low Smoke Zero Halogen (FR-LSZH) |
| Installation |
Indoor and Outdoor Environmental Deployment (Non-Metallic, Dielectric Structure) |
| Packaging Length |
Standard Box: 1,000 Meters / Box |
| Application |
FTTx, FTTR (Fiber to the Room) Systems, Multi-Channel CCTV Signal Transmission, Indoor Routing, and Enterprise Networks |
| Fiber Standard |
ITU-T G.657A2 Single-Mode (Superior Bend Insensitivity) |
| Flame Rating |
Meets IEC 60332-1, IEC 60754-1 & 2, and IEC 61034-2 Standards (LSZH Non-Flame Propagation) |
| Environmental Standards |
RoHS Compliant |
| Electrical Safety |
100% Non-Metallic Structure — Completely Safe from Electrical Surges, Lightning Induction, and Power Interferences |
| SMART FEATURES |
| Non-Metallic 2-Core Safety Design |
Contains zero metallic elements (utilizing fiberglass reinforced plastic strength members) coupled with a 2-core layout for enhanced line redundancy and safety |
| Low Smoke Zero Halogen |
LSZH sheath ensures safety by minimizing smoke density and eliminating toxic halogen gases during fire incidents |
| Bend-Insensitive Performance |
Built with G.657A2 optical fibers to accommodate tight indoor corner routing and complex architectural layouts without macro-bending signal loss |
| Lightweight & Flexible |
Compact flat profile engineered for effortless pulling, stapling, and discreet surface-mount or duct routing inside residential and commercial spaces |
| GENERAL |
| Core Diameter |
Cladding 125$\mu$m Single-Mode Core Structure |
| Color |
Black / White (Dependent on production batch) |
| Warranty |
Standard Manufacturer Warranty (Up to 30 Years System Link Warranty when installed under certified guidelines) |

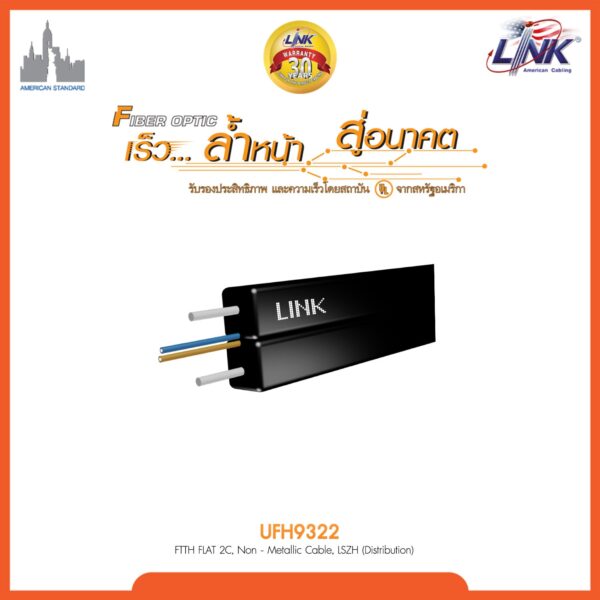

Note: The LINK UFH9322 is a 2-core single-mode flat non-metallic fiber optic distribution cable supplied in a 1,000-meter box. Utilizing bend-insensitive G.657A2 fiber and a safe LSZH jacket, its dielectric construction makes it completely immune to electrical interference, ideal for sensitive multi-channel indoor data routing and advanced CCTV connections.
Important: The LINK UFH9322 cable features a lightweight flat profile reinforced with non-metallic fiberglass elements and a 2-core configuration. Because it contains no conductive metal components, it provides absolute protection against lightning strikes and power feedback, making it an ideal solution for professional indoor FTTR/FTTH multi-core distribution pathways.
