| Features |
Description |
| Device Type |
FTTH / FTTx Round 1-Core Stranded Drop Cable (Self-Support Drop Cable) |
| Brand / Series |
LINK (Interlink) / Round Self-Support FTTH Solution (TOT & NT Approved) |
| Fiber Type |
Single-Mode Fiber (ITU-T G.657A2, Fully Compatible with G.652D) |
| Core Count |
1 Core (1C Structure) |
| Cable Construction |
Round Profile Stranded Drop Cable with Integrated Stranded Messenger Wire ($7 \times 0.4$ mm) |
| Jacket Material |
Flame Retardant Polyethylene (FR-PE, Outdoor UV-Resistant Sheath) |
| Installation |
Outdoor Aerial Pole-to-Building, Duct, and Last-Mile Subscriber Drop Deployment |
| Packaging Length |
Standard Reel / Box: 1,000 Meters / Reel |
| Application |
FTTx, Last-Mile Aerial Subscriber Drops, TOT / NT Public Telecommunication Infrastructure Networks |
| Fiber Standard |
ITU-T G.657A2 Single-Mode (Superior Bend Insensitivity) |
| Messenger Wire |
Integrated Stranded Steel Messenger Wire ($7 \times 0.4$ mm, $\approx 1.2$ mm outer diameter) for Heavy Aerial Span Support |
| Flame Rating & Compliance |
Meets TOT & NT Standards for Outdoor Non-Flame Propagation and Weather Durability |
| Environmental Standards |
RoHS Compliant |
| SMART FEATURES |
| TOT & NT Approved Standard |
Officially certified and specified for use in national telecommunication projects by TOT and National Telecom (NT) |
| Stranded Messenger Support |
Features a high-strength stranded steel messenger wire built to handle long outdoor aerial pole spans and high tension loads |
| Aramid Yarn Reinforcement |
Protected internally with aramid yarn strength members to safeguard the fiber core against mechanical stress |
| Easy Termination Buffer |
900 $\mu$m and 600 $\mu$m tight buffer design allows smooth stripping and rapid field connectorization |
| GENERAL |
| Core Diameter |
Cladding 125 $\mu$m Single-Mode Core Structure |
| Color |
Black (Weather-Resistant PE Outer Sheath) |
| Warranty |
Standard Manufacturer Warranty (Up to 30 Years System Link Warranty when installed under certified guidelines) |

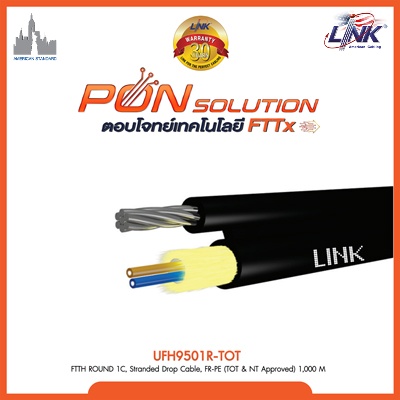

Note: The LINK UFH9501R-TOT is a 1-core single-mode round self-support drop cable featuring a robust FR-PE jacket and an integrated stranded messenger wire, supplied in a 1,000-meter reel. Fully approved by TOT and NT, it is engineered specifically for official last-mile aerial drop networks and rigorous outdoor telecommunication routes.
Important: Designed to meet strict state telecommunication specifications, the LINK UFH9501R-TOT combines a flexible round profile with superior aerial span strength, making it the trusted choice for contractors deploying official public fiber-optic lines and subscriber drop connections.
