| Features |
Description |
| Device Type |

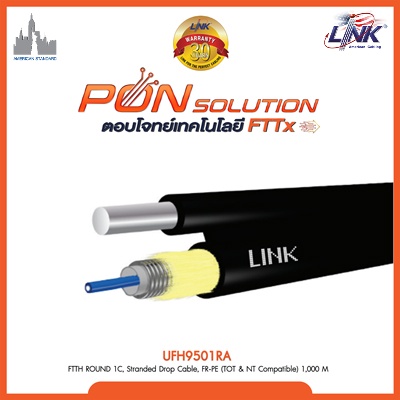

FTTH / FTTx Round Armored 1-Core Drop Cable (Self-Support Drop Cable) |
| Brand / Series |
LINK (Interlink) / Round Armored FTTH Solution (TOT & NT Compatible) |
| Fiber Type |
Single-Mode Fiber (ITU-T G.657A1 / G.657A2 Bend-Insensitive) |
| Core Count |
1 Core (1C Structure) |
| Cable Construction |
Round Profile Armored Drop Cable with Flexible Stainless Steel Tape Armor & Solid Messenger Wire |
| Jacket Material |
Flame Retardant Low Smoke Zero Halogen (FR-LSZH, UV Stabilized Outer Layer) |
| Installation |
Indoor, Outdoor Aerial Pole-to-Building, Underground Conduit, and Direct Burial Deployment |
| Packaging Length |
Standard Reel / Box: 1,000 Meters / Reel |
| Application |
FTTx, Last-Mile Aerial and Underground Subscriber Drops, Heavy-Duty Outdoor Routes, and Enterprise Networks |
| Fiber Standard |
ITU-T G.657A1 / G.657A2 Single-Mode (Superior Bend Insensitivity) |
| Armor Protection |
Flexible Stainless Steel Tape Armor Layer Providing High Crush Resistance and Effective Rodent Protection |
| Messenger Wire |
Integrated Solid Steel Messenger Wire ($\approx 1.2$ mm) for Rugged Aerial Span Support |
| Flame Rating & Compliance |
Meets IEC Standards for Non-Flame Propagation and Low Smoke Emission (LSZH) |
| SMART FEATURES |
| Steel Armored Shielding |
Features an inner flexible stainless steel tape armor providing maximum physical defense against crushing forces, sharp impacts, and rodent attacks |
| Aerial & Burial Versatility |
Combines an integrated solid messenger wire for aerial pole spans with armored protection suited for underground conduit or harsh environments |
| Aramid Yarn Reinforcement |
Equipped with high-strength aramid yarns to absorb intensive tensile loads and safeguard the internal optical core |
| Easy-Stripping Buffer |
900 $\mu$m and 600 $\mu$m tight buffer design allows smooth stripping, fast field-connectorization, and clean termination |
| GENERAL |
| Core Diameter |
Cladding 125 $\mu$m Single-Mode Core Structure |
| Color |
Black (UV-Resistant Outer Sheath) |
| Warranty |
Standard Manufacturer Warranty (Up to 30 Years System Link Warranty when installed under certified guidelines) |
Note: The LINK UFH9501RA is a 1-core single-mode round armored self-support drop cable featuring built-in stainless steel tape armor and an integrated solid messenger wire, supplied on a 1,000-meter reel. Combining bend-insensitive G.657A fiber with a safe LSZH jacket, it is engineered for high-protection last-mile FTTx networks facing severe mechanical and environmental hazards.
Important: The LINK UFH9501RA offers a dual-threat defense mechanism—delivering aerial support strength alongside heavy-duty rodent and crush resistance via its flexible steel armor. It serves as an elite, robust solution for professional installers managing rigorous outdoor-to-indoor transition pathways.
