| Features |
Description |
| Device Type |
Fiber Optic Patch Cord (SC/APC to SC/APC Simplex Flat Drop Cable) |
| Brand / Series |
LINK (Interlink) / FTTx Flat Drop Cable Assembly (TRUE Compatible / Approved) |
| Fiber Type |
Single-Mode Fiber (ITU-T G.657A / G.657A2 Bend-Insensitive) |
| Core Count |
1 Core (Simplex Structure) |
| Connector Types |
SC Connector (Side A) to SC Connector (Side B) |
| Polish Type |
APC to APC (Angled Physical Contact to Angled Physical Contact) |
| Cable Construction |
Flat Drop Cable Profile with Metallic Strength Member |
| Jacket Material |
Flame Retardant Low Smoke Zero Halogen (FR-LSZH) |
| Installation |
Indoor and Outdoor Last-Mile Subscriber Drop / ONT Connections |
| Cable Length |
3.0 Meters |
| Application |
FTTx, CATV, CCTV, High-Speed Internet Access, and Telecommunication Networks |
| Fiber Standard |
ITU-T G.657A Single-Mode (Superior Macro-Bend Insensitivity) |
| Flame Rating |
FR-LSZH (Meets IEC 60332-1 & RoHS Compliant) |
| Insertion Loss |
Typ. ≤ 0.15 dB (Max. ≤ 0.30 dB) |
| Return Loss |
APC ≥ 60 dB |
| Standards |
ANSI/TIA-568.3-D, ISO/IEC 11801, ITU-T G.657A, IEC 60793, IEC 60794 |
| SMART FEATURES |
| SC/APC to SC/APC Configuration |
Precision Factory-Terminated SC/APC Connectors optimized for high return loss and minimal reflection in GPON/FTTx networks |
| Flat Drop Cable Design |
Compact flat profile featuring built-in strength members for secure indoor drops and direct equipment patching |
| Low Smoke Zero Halogen Sheath |
LSZH outer jacket ensures safety by emitting minimal smoke and zero halogen toxic gases during fire hazards |
| TRUE Compatible Standard |
Fully tested and certified to meet provider specifications (commonly deployed across major ISP last-mile infrastructures) |
| GENERAL |
| Cable Dimensions |
Flat Profile approx. 1.95~2.7 x 2.5~3.0 mm |
| Minimum Bending Radius |
30 mm |
| Operating / Storage Temperature |
-40°C to +85°C |
| Length |
3.0 Meters |
| Warranty |
Standard Manufacturer Warranty (Up to 30 Years System Link Warranty under certified guidelines) |

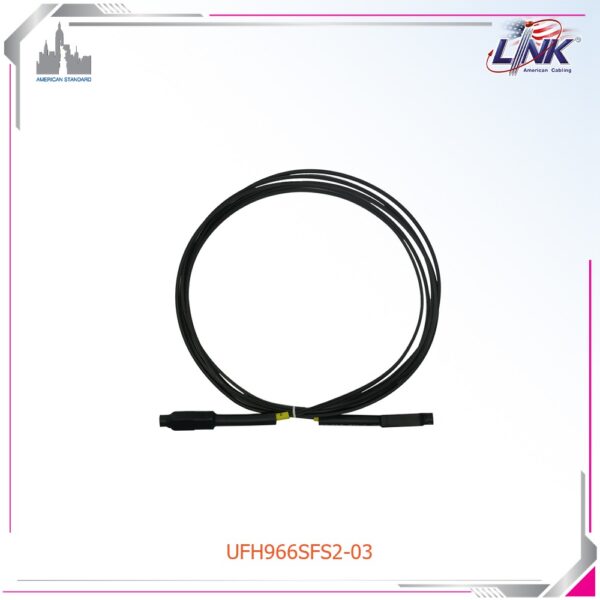

Note: The LINK UFH966SFS2-03 is a 3-meter single-mode simplex flat drop fiber optic patch cord featuring SC/APC to SC/APC connectors. Built with bend-insensitive G.657A fiber and a safe FR-LSZH jacket, it provides exceptional optical performance with low insertion loss and high return loss for modern FTTx subscriber terminations.
Important: Factory-assembled and 100% tested for rigorous quality control, the LINK UFH966SFS2-03 is fully compatible with major Thai telecommunication standards (widely utilized in TRUE network drop deployments), making it ideal for professional ONT patching and last-mile optical links.
