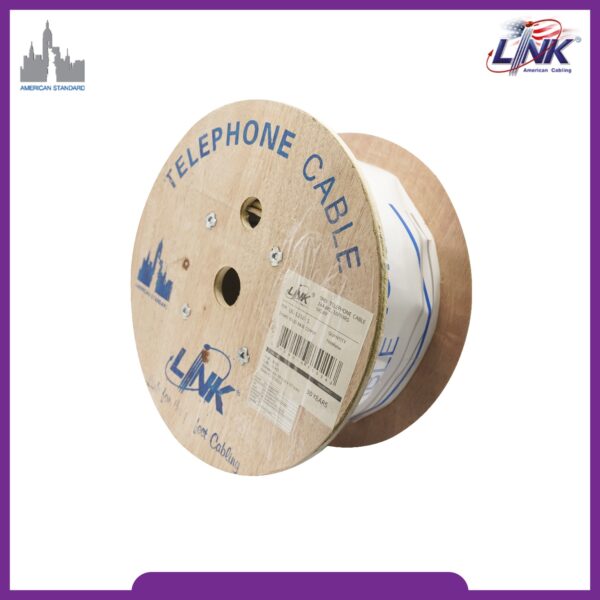

Specifications LINK UL-1210-1
| Features | Specifications |
|---|---|
Product Overview |
|
| Product Type | Telephone Cable |
| Model | UL-1210-1 |
| Application | Telephone Network and Communication Systems |
| Number of Pairs | 10 Pairs |
| Conductor Material | Copper |
Electrical and Cable Specifications |
|
| Conductor Diameter | 0.50 mm (24 AWG) |
| Insulation Thickness | 0.20 mm |
| Sheath Thickness | 0.80 mm |
| Overall Cable Diameter | 8.3 mm |
| Insulation Material | Polyethylene (PE) |
| Sheath Material | Polyethylene (PE) |
Packaging and Installation |
|
| Packaging | 100 Meters per Roll |
| Installation | Suitable for indoor telephone network installations |
| Application | Telephone distribution, connection and communication wiring |
Note: Specifications are based on the manufacturer’s telephone cable catalog and may be subject to change without notice.
Important: Verify cable specifications, installation conditions and compatibility with the telephone network system before installation.
