Specifications LINK US-1003
| Features | Description |
|---|---|

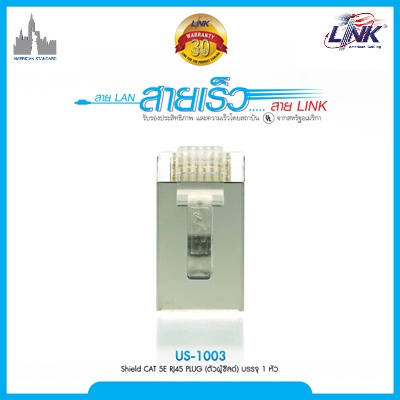

| Product Type | Shielded CAT5E RJ45 Modular Plug |
| Category | CAT5E |
| Connector | RJ45 Male, 8P8C |
| Type | Shielded |
| Wire Size | 26–22 AWG Solid & Stranded |
| Housing | Polycarbonate, UL94V-0 with LINK Logo |
| Contact | Phosphor Bronze with over 50 Micro-inch Gold Plating |
| Positions | 8 Position |
| Standard | ANSI/TIA-568.2-D, ISO/IEC 11801:2017 Class D, EN 50173-1 |
| Certification | UL Listed, Lead-Free & RoHS Compliant |
| Packaging | 1 Piece/Package |
| Application | Description |
|---|---|
| Network | 10/100/1000BASE-T, 2.5GBASE-T |
| PoE | PoE and PoE+ |
| Cabling | Shielded CAT5E Cable Termination |
| Other | Token Ring, ATM, ISDN, VoIP and Ethernet Applications |
Note: Shielded CAT5E RJ45 modular plug for solid and stranded network cables.
Important: Designed for use with shielded network cables to help reduce electromagnetic interference.
