Specifications LINK US-1006A
| Features | Description |
|---|---|
| Product Type | CAT6 RJ45 Slim Modular Jack |
| Connector Type | RJ45 Female Jack, 8P8C |
| Category | CAT6 |
| Type | Unshielded |
| Color | White with 5 Color Changeable Labels |
| Wiring Pattern | T568A / T568B Universal Color Pattern |
| PCB Technology | Designed with PCB technology to balance signal transmission, insertion loss and crosstalk performance |
| Termination | Dual Type 110 IDC or Krone |
| Compatible Tool | 110 IDC Impact Tool, Krone Tool and LINK Fast Termination Tool TL-2106 |
| Accept Wire Size | 22–26 AWG Solid & Stranded Wire |
| Housing Material | High Impact Flame Retardant ABS+PC |
| Flame Rating | UL94V-0 |
| Contact Material | Phosphor Bronze with over 50 micro-inches Gold Plating |
| Durability | 800 Mating Cycles / 200 Re-termination Cycles |
| Protection | Dust Cover Cap |
| Standards | ANSI/TIA-568.2-D Category 6, ANSI/TIA-568-C.2, ISO/IEC 11801:2017 Class E, EN 50173-1 Category 6, UL 1863, IEC 60603-7, FCC Part 68 Subpart F |
| Certification | UL Listed E196947, Intertek Certified, Lead-Free & RoHS Compliant |
| Application | Description |
|---|---|
| LAN Cabling | Suitable for CAT6 structured cabling systems. |
| Ethernet | Supports 10/100/1000BASE-T, 2.5G/5G and 10GBASE-T network applications. |
| PoE | Suitable for PoE, PoE+ and 4PPoE network installations. |
| Outlet & Face Plate | Suitable for installation in compatible LAN outlets, face plates and modular panels. |
| Network Management | Five interchangeable color labels help identify and manage network ports easily. |

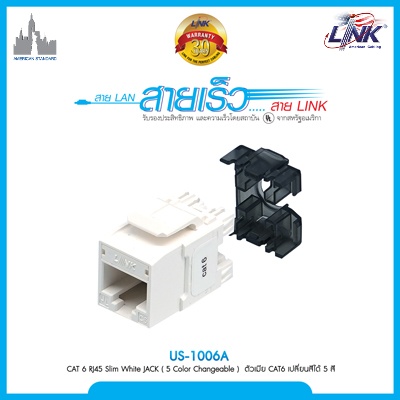

Note: LINK US-1006A is a CAT6 RJ45 Slim Unshielded Modular Jack with five color-changeable labels and universal T568A/T568B wiring.
Important: US-1006A is an unshielded CAT6 modular jack and requires a compatible termination tool for installation.
