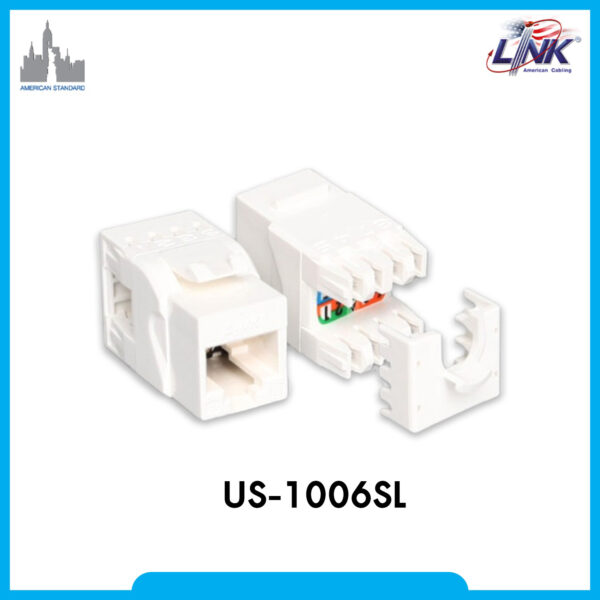

Specifications LINK US-1006SL
| Features | Description |
|---|---|
| Product Type | CAT 6 RJ45 Modular Jack |
| Type | Unshielded, Slim |
| Category | CAT 6 |
| Termination | 110 IDC Impact Tool |
| Wiring | T568A / T568B Universal |
| Wire Size | 26–22 AWG Solid & Stranded |
| Contact Material | Phosphor Bronze with Over 50 Micro-Inches Gold Plating |
| Housing | High Impact Flame Retardant ABS, UL94V-0 |
| Color | White |
| Performance | PCB Technology, 1–250 MHz |
| Compliance | ANSI/TIA-568.2-D, ISO/IEC 11801 Class E, EN 50173-1, UL 1863 & RoHS |
| Application | Description |
|---|---|
| Network Cabling | Suitable for CAT 6 UTP structured cabling systems. |
| Gigabit Ethernet | Supports 10/100/1000BASE-T Ethernet applications. |
| Multi-Gigabit Network | Supports 2.5G/5G and 10GBASE-T applications. |
| PoE | Suitable for PoE and PoE+ network applications. |
| Outlet Installation | Suitable for face plates, outlet boxes and patch panels. |
Note: The LINK US-1006SL is a CAT 6 RJ45 Modular Jack with a slim unshielded design and 110 IDC termination.
Important: The US-1006SL uses PCB technology to balance signal transmission and reduce insertion loss and crosstalk from 1 to 250 MHz. It is available in White and supports 26–22 AWG solid or stranded wire.
