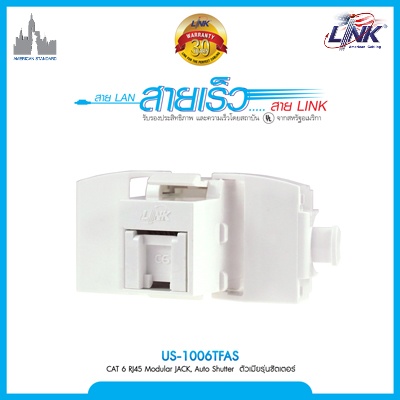

Specifications LINK US-1006TFAS
| Features | Description |
|---|---|
| Product Type | CAT 6 RJ45 Modular Jack |
| Category | CAT 6 |
| Type | Unshielded |
| Installation | Tool Free |
| Shutter | Auto Shutter |
| Wiring | T568A / T568B Universal |
| Wire Size | 26–22 AWG Solid and Stranded |
| Contact Material | Phosphor Bronze with Over 50 Micro-Inches Gold Plating |
| Housing | High Impact Flame Retardant ABS, UL94V-0 |
| Color | White |
| Compliance | ANSI/TIA-568.2-D Category 6, ISO/IEC 11801 Class E, EN 50173-1, Lead-Free & RoHS |
| Application | Description |
|---|---|
| Network Cabling | Suitable for CAT 6 UTP structured cabling systems. |
| Gigabit Ethernet | Supports 10/100/1000BASE-T Ethernet applications. |
| Multi-Gigabit Network | Supports 2.5GBASE-T, 5GBASE-T and 10GBASE-T applications. |
| PoE | Supports PoE, PoE+ and 4PPoE applications. |
| Outlet Installation | Suitable for face plates, outlet boxes and network infrastructure. |
Note: The LINK US-1006TFAS is a CAT 6 RJ45 Modular Jack featuring Tool Free installation and an Auto Shutter to protect the RJ45 port from dust and debris.
Important: The US-1006TFAS supports T568A/T568B wiring and 26–22 AWG solid or stranded UTP cable. It is designed for CAT 6 network cabling applications.
