Specifications LINK US-1022TFAS
| Features | Description |
|---|---|
| Product Type | CAT 6A UTP RJ45 Modular Jack |
| Category | Category 6A |
| Type | Unshielded, Superslim |
| Termination | Tool Free |
| Shutter | Auto Shutter |
| Standard | ANSI/TIA-568.2-D Category 6A, ISO/IEC 11801:2017 Class EA, EN 50173-1 |
| Application | 10/100/1000 BASE-T, 2.5G/5G, 10G BASE-T, PoE/PoE+/4PPoE, Token Ring, ATM, ISDN and VoIP |
| Wiring Pattern | T568A / T568B Universal Color Pattern |
| Housing Material | High Impact Flame Retardant Plastic |
| Housing Flammability | UL94V-0 ABS |
| Jack Contact | Phosphor Bronze with over 50 micro-inch Gold Plating |
| IDC Contact | Phosphor Bronze with Tin over 150 micro-inch Nickel under Plating |
| Termination Block | Tool Free, 180° IDC |
| Accept Wire Size | 26–22 AWG Solid & Stranded Wire |
| Durability | 1,000 Mating Cycles / 200 Re-termination Cycles |
| Approvals | UL Listed E196947 and Intertek Channel Test |
| Certification | Lead-Free & RoHS Compliant |
| Application | Description |
|---|---|
| LAN System | Designed for Category 6A structured cabling and high-speed Ethernet networks. |
| 10G Ethernet | Supports 10G BASE-T and high-speed network applications. |
| PoE System | Suitable for PoE, PoE+ and 4PPoE network installations. |
| Patch Panel | Suitable for use with compatible CAT 6A patch panels and face plates. |

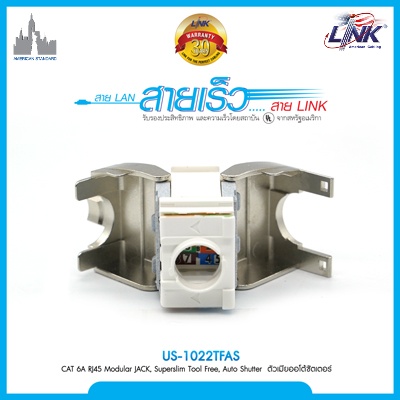

Note: The LINK US-1022TFAS is a CAT 6A UTP RJ45 Modular Jack featuring a Superslim Tool Free design with Auto Shutter.
Important: The US-1022TFAS is an unshielded CAT 6A RJ45 jack designed for high-speed Ethernet applications and supports T568A/T568B wiring.
