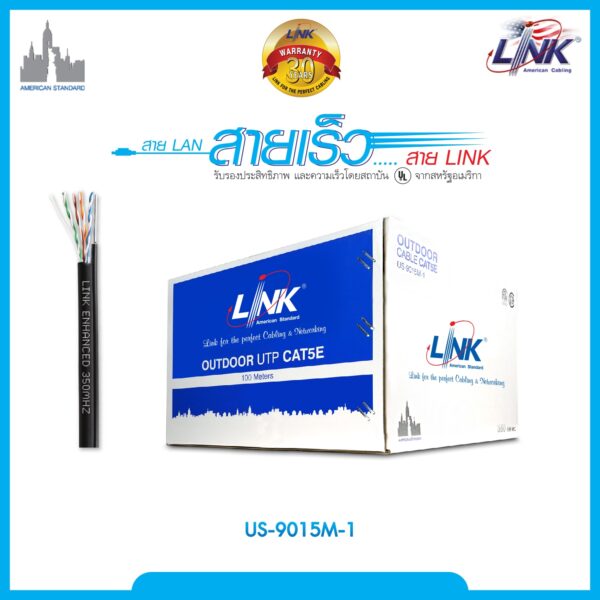

CAT5E UTP PE Outdoor Cable with Drop Wire (350MHz, 100m)

  • CAT5E UTP cable with 4 pairs 24AWG solid bare copper conductor
  • Supports bandwidth up to 350MHz for high-speed data transmission
  • PE outdoor jacket with galvanized steel messenger wire for aerial installation
  • Supports Gigabit Ethernet, PoE and PoE+ applications
  • Suitable for outdoor LAN, CCTV and network cabling applications
  • Complies with ANSI/TIA-568.2-E, ISO/IEC 11801 Class D and RoHS standards
หมวดหมู่: , , ป้ายกำกับ:
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

Specifications LINK US-9015M-1

Features Description
Device Type CAT5e U/UTP Outdoor LAN Cable with Messenger Wire
Category Category 5e (CAT5e)
Bandwidth 350 MHz
Conductor Solid Bare Copper
Wire Gauge 24 AWG
Cable Construction 4 Pairs (8 Wires) U/UTP with Galvanized Steel Messenger Wire
Messenger Wire 1.3 mm Galvanized Steel Wire
Jacket Material UV Resistant PE (Polyethylene)
Jacket Color Black
Cable Length 100 Meters / Reelex Box
Application Outdoor LAN Cabling, CCTV, IP Camera, Wireless Access Point, Building-to-Building Network and Aerial Installation
Cable Standard ANSI/TIA-568.2-E Category 5e, ISO/IEC 11801 Class D
Category CAT5e U/UTP Outdoor
Frequency 350 MHz
Conductor Material Solid Bare Copper
Conductor Size 24 AWG
Number of Conductors 4 Pairs / 8 Wires
Insulation Material HDPE
Messenger Wire 1.3 mm Galvanized Steel
Outer Jacket UV Resistant PE Black Jacket
Cable Diameter 5.5 mm (Cable) / 9.3 mm (Including Messenger Wire)
SMART FEATURES
Messenger Wire Design Integrated Galvanized Steel Messenger Wire Supports Aerial Installation Without Additional Support Cable
UV Resistant PE Jacket Provides Excellent Protection Against Sunlight, Rain and Outdoor Weather Conditions
CAT5e Performance Supports Gigabit Ethernet Transmission up to 1000 Mbps
PoE / PoE+ Support Supports IEEE 802.3af and IEEE 802.3at Power over Ethernet Applications
Solid Copper Conductor Ensures Stable Data Transmission with Low Signal Loss
GENERAL
Cable Type CAT5e U/UTP Outdoor Cable with Messenger Wire
Impedance 100 ± 15 Ohms
DC Resistance ≤ 9.38 Ω/100m
Propagation Delay ≤ 536 ns/100m @350MHz
Delay Skew ≤ 25 ns
Minimum Bend Radius 4 × Cable Diameter
Tensile Strength 1400 N
Installation Temperature -40°C to +75°C
Storage Temperature -40°C to +80°C
Standards Compliance ANSI/TIA-568.2-E, ISO/IEC 11801, EN 50173-1, EN 50288-3-1, IEC 61156-5, UL444, RoHS
Packaging 100m Reelex Box
Warranty 30 Years

Note: The LINK US-9015M-1 is a CAT5e U/UTP Outdoor LAN Cable with an integrated galvanized steel messenger wire for aerial installation. It features 24 AWG solid bare copper conductors, 350 MHz bandwidth, a UV-resistant PE jacket, and is supplied in a convenient 100-meter Reelex box. It is suitable for outdoor CCTV, IP Camera, Wireless Access Point, and building-to-building network applications.

Important: The LINK US-9015M-1 offers the same electrical and mechanical performance as the US-9015M (305 m version). The main difference is the 100-meter packaging, making it ideal for smaller outdoor installations while maintaining support for Gigabit Ethernet, IEEE 802.3af/at PoE, and aerial deployment using the integrated messenger wire.
