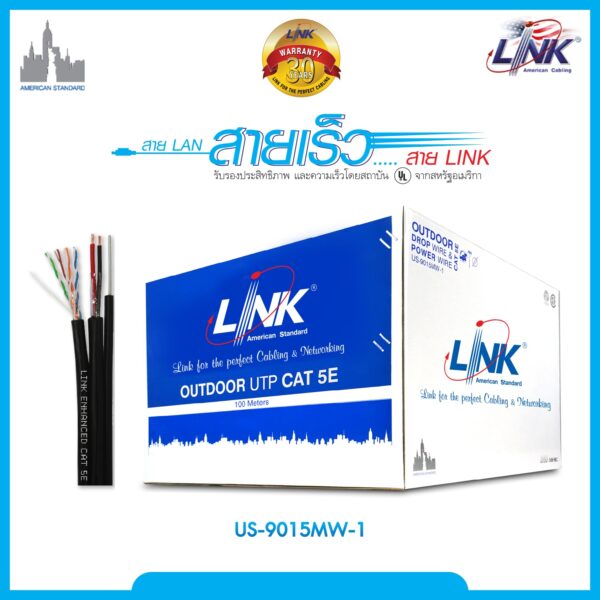

LINK US-9015MW-1

LINK US-9015MW-1

LINK US-9015MW-1

LINK US-9015MW-1

CAT5E UTP PE Outdoor Cable with Drop Wire & Power Wire (350MHz, 100m)

  • CAT5E UTP cable with 4 pairs 24AWG solid bare copper conductor
  • Supports bandwidth up to 350MHz for high-speed data transmission
  • PE outdoor jacket with galvanized steel messenger wire for aerial installation
  • Includes power wire for supplying power to network and CCTV devices
  • Supports Gigabit Ethernet, PoE, PoE+ and outdoor network applications
  • Complies with ANSI/TIA-568.2-D, ISO/IEC 11801 Class D, UL and RoHS standards
หมวดหมู่: , , ป้ายกำกับ:
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

Specifications LINK US-9015MW-1

Features Description
Device Type CAT5e U/UTP Outdoor LAN Cable with Drop Wire and Power Wire
Category Category 5e (CAT5e)
Bandwidth 350 MHz
Conductor Solid Bare Copper
Wire Gauge 24 AWG
Cable Construction 4 Pairs (8 Wires) U/UTP + Drop Wire + Power Wire
Drop Wire Galvanized Steel Messenger Wire 1.3 mm
Power Wire 18 AWG Stranded Bare Copper (24 × 0.2 mm)
Jacket Material UV Resistant PE (Polyethylene)
Jacket Color Black
Cable Length 100 Meters / Reel in Box
Application Outdoor LAN, CCTV, IP Camera, Wireless Access Point, PoE Equipment, Building-to-Building Network and Aerial Installation
Cable Standard ANSI/TIA-568.2-D Category 5e, ISO/IEC 11801 Class D
Category CAT5e U/UTP Outdoor with Drop Wire & Power Wire
Frequency 350 MHz
Conductor Material Solid Bare Copper
Data Conductor Size 24 AWG
Power Wire Size 18 AWG Stranded Bare Copper
Number of Data Conductors 4 Pairs / 8 Wires
Insulation Material HDPE
Drop Wire Material Galvanized Steel Wire 1.3 mm
Outer Jacket UV-Proof PE Black Jacket
Cable Diameter 5.4 mm (15.8 mm Including Drop Wire & Power Wire)
SMART FEATURES
3-in-1 Cable Design Combines Data Cable, Power Wire and Messenger Wire in One Cable for Faster and Easier Outdoor Installation
Built-in Messenger Wire Provides Mechanical Support for Aerial Installation Between Buildings and Utility Poles
Integrated Power Wire Supplies Power to Remote Devices Such as CCTV Cameras and Wireless Equipment Without Separate Power Cable
Outdoor PE Jacket UV Resistant Jacket Protects Against Sunlight, Rain and Harsh Outdoor Conditions
CAT5e Performance Supports Gigabit Ethernet (10/100/1000 Mbps), PoE/PoE+ and 350 MHz Bandwidth
GENERAL
Cable Type CAT5e U/UTP PE Outdoor Cable with Drop Wire & Power Wire
Impedance 100 ± 15 Ohms (1 MHz to 350 MHz)
DC Resistance ≤ 9.38 Ω/100m
Mutual Capacitance ≤ 5.6 nF/100m
Propagation Delay ≤ 536 ns/100m @350MHz
Delay Skew ≤ 25 ns
Minimum Bend Radius 4 × Cable Diameter
Tensile Strength 16.5 MPa (2400 PSI)
Installation / Operating Temperature -40°C to +75°C
Storage Temperature -40°C to +80°C
Standards Compliance ANSI/TIA-568.2-D, ISO/IEC 11801, EN 50173-1, EN 50288-3-1, IEEE 802.3i/u/ab, IEEE 802.3bz, IEEE 802.3af/at, RoHS
Packaging 100m Reel in Box
Warranty 30 Years

Note: The LINK US-9015MW-1 is a 100-meter CAT5e U/UTP outdoor LAN cable that combines a 24 AWG solid bare copper data cable, an 18 AWG stranded power wire, and a 1.3 mm galvanized steel messenger wire in a single cable. It is designed for outdoor CCTV, IP camera, wireless access point, and building-to-building network installations requiring both aerial support and power delivery.

Important: The LINK US-9015MW-1 offers the same electrical and mechanical performance as the 305-meter US-9015MW model, with the main difference being its convenient 100-meter reel-in-box packaging. Its integrated messenger wire eliminates the need for a separate support cable, while the built-in 18 AWG power wire simplifies powering remote devices during outdoor installations.
