| Features |
Description |
| Device Type |
Outdoor Shielded LAN Cable |
| Cable Category |
CAT5E F/UTP Outdoor Cable |
| Conductor |
Solid Bare Copper 24 AWG |
| Core Count |
4 Pairs (8 Wires) |
| Bandwidth |
350 MHz |
| Cable Construction |
F/UTP with Aluminum Mylar Shield and Drain Wire |
| Insulation |
High Density Polyethylene (HDPE) |
| Shielding |
Aluminum Mylar Tape with Tinned Copper Drain Wire |
| Outer Jacket |
UV-Proof PE Black Jacket |
| Cable Length |
305 Meter / Pull Box |
| Application |
Outdoor Horizontal Cabling, CCTV, IP Camera, Gigabit Ethernet, 2.5G BASE-T, PoE, PoE+, Data, Voice, Video and Outdoor Network Infrastructure |
| Cable Standard |
ANSI/TIA-568.2-D Category 5E, ISO/IEC 11801:2017 Class D |
| Category |
Category 5E F/UTP Outdoor |
| Frequency |
350 MHz |
| Conductor Size |
24 AWG Solid Bare Copper |
| Number of Pairs |
4 Pairs (8 Conductors) |
| Shielding |
Aluminum Mylar Tape |
| Drain Wire |
Tinned Copper |
| Cable Diameter |
6.1 mm |
| Characteristic Impedance |
100 ± 15 Ohms, 1 MHz to 350 MHz |
| Packaging |
305 Meter / Pull Box |
| SMART FEATURES |
| CAT5E Enhanced Performance |
Supports Gigabit Ethernet and High-Speed Network Applications with Bandwidth up to 350 MHz |
| F/UTP Shielding |
Aluminum Mylar Shield Helps Reduce Electromagnetic Interference and External Signal Noise |
| UV-Proof Outdoor Jacket |
Black PE Jacket Provides Protection Against UV Radiation, Moisture and Outdoor Environmental Conditions |
| Solid Bare Copper |
24 AWG Solid Bare Copper Conductors Provide Reliable Signal Transmission and Stable Network Performance |
| PoE Support |
Supports IEEE 802.3af PoE, IEEE 802.3at PoE+ and IEEE 802.3bt Type 4 Applications |
| GENERAL |
| Cable Type |
CAT5E F/UTP Outdoor PE Shielded LAN Cable |
| Installation Method |
Outdoor Horizontal Cabling and Outdoor Network Installation |
| Minimum Bend Radius |
4 × Cable Diameter |
| Installation / Operating Temperature |
-40°C to +75°C |
| Storage Temperature |
-40°C to +80°C |
| Flame Rating |
CMX |
| Standards Compliance |
ANSI/TIA-568.2-D, ISO/IEC 11801:2017 Class D, EN 50173-1 Category 5E, ICEA S-90-661 Category 5E, EN 50288-2-1, NEMA WC 63.1, IEC 61156-5, ASTM D4566-98, IEC 60332-1-2, UL 444, CSA 22.2 No.214, 3P Verified to Category 5E, UL E197771, RoHS |
| Warranty |
30 Years |

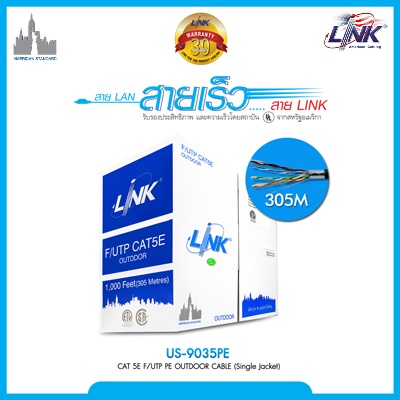

Note: The LINK US-9035PE is a CAT5E F/UTP outdoor LAN cable featuring 24 AWG solid bare copper conductors, 4-pair construction, an overall Aluminum Mylar shield with tinned copper drain wire, and 350 MHz bandwidth performance. It uses a UV-proof PE black outer jacket designed to protect the cable from sunlight and outdoor environmental conditions. The cable is supplied in a 305-meter Pull Box.
Important: The LINK US-9035PE supports 10/100/1000 BASE-T Gigabit Ethernet, 2.5G BASE-T, IEEE 802.3af PoE, IEEE 802.3at PoE+ and IEEE 802.3bt Type 4 applications. Its F/UTP shielding helps reduce electromagnetic interference, while the UV-proof PE jacket makes it suitable for outdoor CCTV, IP Camera, data, voice, video and network infrastructure installations.
