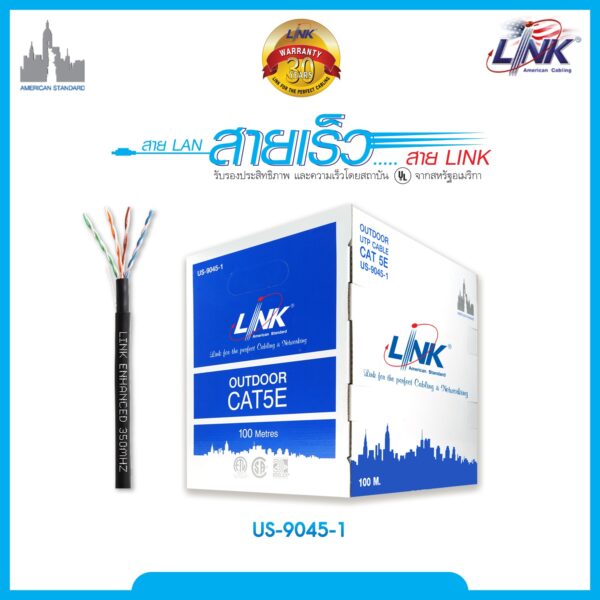

CAT5E UTP PE Outdoor Cable (Double Jacket, 350MHz)

  • CAT5E UTP cable with 4 pairs 24AWG solid bare copper conductor
  • Supports bandwidth up to 350MHz for high-speed data transmission
  • Double Jacket PE construction provides outdoor weather and UV protection
  • Supports Gigabit Ethernet, PoE and PoE+ applications
  • Suitable for outdoor LAN, CCTV, network and structured cabling applications
  • Complies with ANSI/TIA-568.2-E, ISO/IEC 11801 Class D, UL and RoHS standards
หมวดหมู่: , , ป้ายกำกับ:
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

Specifications LINK US-9045-1

Features Description
Device Type CAT5e U/UTP Outdoor LAN Cable (Double Jacket)
Category Category 5e (CAT5e)
Bandwidth 350 MHz
Conductor Solid Bare Copper
Wire Gauge 24 AWG
Cable Construction 4 Pairs (8 Wires) U/UTP
Jacket Material FR-PVC Inner Jacket + UV Resistant PE Outer Jacket
Jacket Color Black
Cable Length 100 Meters / Reelex Box
Application Outdoor LAN Cabling, CCTV, IP Camera, PoE, Building-to-Building Network and Industrial Network
Cable Standard ANSI/TIA-568.2-E Category 5e, ISO/IEC 11801 Class D
Category CAT5e U/UTP Outdoor
Frequency 350 MHz
Conductor Material Solid Bare Copper
Conductor Size 24 AWG
Number of Conductors 4 Pairs / 8 Wires
Insulation Material HDPE
Inner Jacket Lead Free FR-PVC
Outer Jacket UV-Proof PE (Polyethylene)
Cable Diameter 6.3 mm
SMART FEATURES
Outdoor Double Jacket Design Provides Protection Against UV Rays, Moisture, Weather Conditions and Outdoor Installation Environment
CAT5e Enhanced Performance Supports Gigabit Ethernet Transmission up to 1000 Mbps
Solid Copper Conductor Provides Stable Transmission Performance and Lower Signal Loss
PoE / PoE+ Support Supports IEEE 802.3af and IEEE 802.3at Power over Ethernet Applications
Outdoor Durability Designed for Direct Outdoor Installation Including CCTV and Network Infrastructure
GENERAL
Cable Type CAT5e U/UTP Outdoor Double Jacket Cable
Impedance 100 ± 15 Ohms
DC Resistance ≤ 9.38 Ω/100m
Propagation Delay ≤ 536 ns/100m @350MHz
Delay Skew ≤ 25 ns
Minimum Bend Radius 4 × Cable Diameter
Tensile Strength 9.7 MPa (1400 PSI)
Installation Temperature -40°C to +75°C
Storage Temperature -40°C to +80°C
Standards Compliance ANSI/TIA-568.2-E, ISO/IEC 11801, EN 50173-1, EN 50288-3-1, IEC 61156-5, UL444 (CMX), RoHS
Packaging 100m Reelex Box
Warranty 30 Years

Note: The LINK US-9045-1 is a CAT5e U/UTP Outdoor LAN Cable with a double-jacket construction, featuring 24 AWG solid bare copper conductors, 350 MHz bandwidth, a flame-retardant FR-PVC inner jacket, and a UV-resistant PE outer jacket. It is supplied in a convenient 100-meter Reelex box and is designed for outdoor CCTV, IP Camera, PoE, Gigabit Ethernet, and industrial network installations.

Important: The LINK US-9045-1 has the same electrical and transmission performance as the US-9045 (305 m version). The primary difference is the packaging length—100 meters instead of 305 meters—making it ideal for smaller projects while still providing UV protection, double-jacket durability, Gigabit Ethernet support, and compatibility with IEEE 802.3af/at PoE applications.

จัดจำหน่าย By บริษัทโฟกัส ซิสเต็ม แอนด์ ดีไซน์ ช่างติดเเละซ้อมกล้องวงจรปิด พัทยา ชลบุรี

Datasheet
