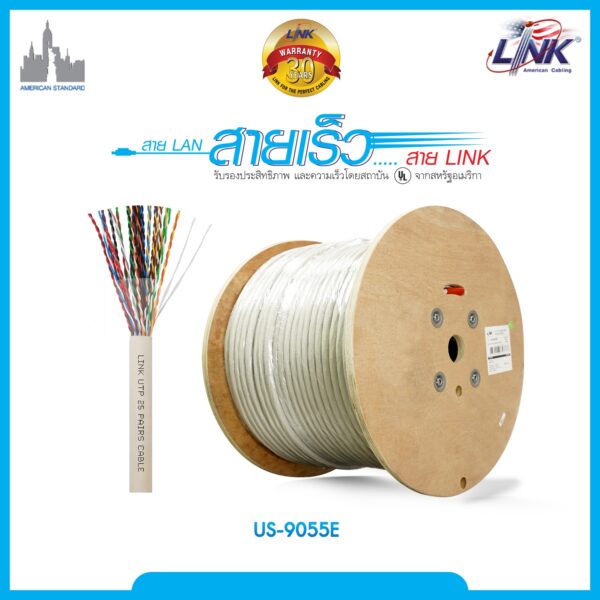

LINK US-9055E
LINK US-9055E
CAT5E UTP 25 Pairs Power Sum Cable (350MHz, CMR)
- CAT5E UTP 25 Pairs cable with 24AWG Solid Bare Copper conductor
- Supports bandwidth up to 350MHz for high-speed data transmission
- Power Sum design reduces crosstalk and improves multi-pair performance
- CMR rated FR-PVC jacket provides flame-retardant protection
- Supports Gigabit Ethernet, PoE, PoE+ and voice/data communication systems
- Complies with ANSI/TIA-568.2-D, ISO/IEC 11801 Class D, UL and RoHS standards
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Specifications LINK US-9055E
| Features | Description |
|---|---|
| Device Type | CAT5e UTP 25 Pairs Power Sum LAN Cable |
| Category | Category 5e (CAT5e) |
| Bandwidth | 350 MHz |
| Conductor | Solid Bare Copper |
| Wire Gauge | 24 AWG |
| Cable Construction | 25 Pairs (50 Wires) UTP Power Sum Cable |
| Jacket Material | FR-PVC (CMR Riser Rated) |
| Jacket Color | White |
| Cable Length | 305 Meters / Roll |
| Application | Building Backbone, Floor-to-Floor Cabling, CCTV, IP Camera, IP Phone, Data and Control Systems |
| Cable Standard | ANSI/TIA-568.2-D Category 5e, ISO/IEC 11801 Class D |
|---|---|
| Category | CAT5e UTP 25 Pair |
| Frequency | 350 MHz |
| Conductor Material | Solid Bare Copper |
| Conductor Size | 24 AWG |
| Number of Pairs | 25 Pairs / 50 Conductors |
| Insulation Material | HDPE |
| Separator | Polyester Tape |
| Rip Cord | Included |
| Outer Jacket | FR-PVC CMR Rated |
| Cable Diameter | 12.5 mm |
| SMART FEATURES | |
|---|---|
| 25 Pair Power Sum Design | Supports High-Density Network Cabling With Multiple Connections Through One Cable |
| CAT5e Performance | Supports Gigabit Ethernet Transmission up to 1000 Mbps |
| Power Sum NEXT Performance | Designed to Reduce Crosstalk Between Multiple Cable Pairs in High-Density Installations |
| CMR Fire Rating | Riser Rated Jacket Helps Prevent Flame Propagation Between Building Floors |
| Solid Copper Conductor | Provides Stable Signal Transmission and Reliable Long-Term Performance |
| GENERAL | |
|---|---|
| Cable Type | CAT5e UTP 25 Pair Indoor Cable |
| Impedance | 100 ± 15 Ohms |
| DC Resistance | ≤ 9.38 Ω/100m |
| Propagation Delay | ≤ 536 ns/100m |
| Delay Skew | ≤ 45 ns/100m |
| Minimum Bend Radius | 8 × Cable Diameter |
| Installation Temperature | -20°C to +60°C |
| Operating Temperature | -20°C to +60°C |
| Packaging | 305m Roll |
| Standards Compliance | ANSI/TIA-568.2-D, ISO/IEC 11801, EN 50173, UL CMR, IEC 60332-1, RoHS |
| Warranty | 30 Years |
Note: The LINK US-9055E is a Category 5e UTP 25 Pair Power Sum LAN Cable designed for high-density indoor structured cabling systems. It features 24 AWG solid bare copper conductors, 350 MHz bandwidth, CMR-rated FR-PVC jacket, and supports Gigabit Ethernet, CCTV, Network Camera, IP Phone, Data, and Control system applications.
Important: The LINK US-9055E is designed for indoor building backbone applications where multiple network connections are required in a single cable. The 25-pair Power Sum construction improves cable management efficiency and reduces installation complexity compared with using multiple individual cables. It supports PoE and PoE+ applications according to IEEE 802.3af/at standards and is supplied as a 305-meter roll.
จัดจำหน่าย By บริษัทโฟกัส ซิสเต็ม แอนด์ ดีไซน์ ช่างติดเเละซ้อมกล้องวงจรปิด พัทยา ชลบุรี
Datasheet
