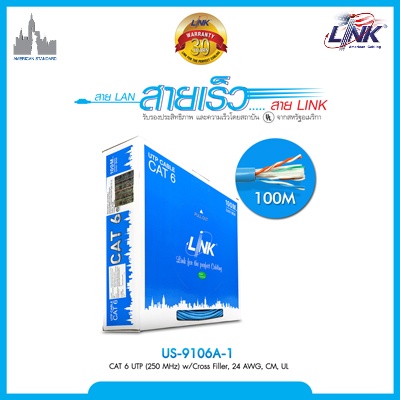

LINK US-9106A-1
LINK US-9106A-1
CAT6 UTP Network Cable (250MHz, 24AWG, 100m)
- Category 6 U/UTP cable with 4 pairs 24AWG solid bare copper conductor
- Supports bandwidth up to 250MHz for high-speed data transmission
- Cross Filler design minimizes crosstalk and improves signal performance
- CM-rated FR-PVC jacket for indoor horizontal cabling
- Supports Gigabit Ethernet, PoE and PoE+ applications
- Complies with ANSI/TIA-568.2-E, ISO/IEC 11801 Class E, UL and RoHS standards
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Specifications LINK US-9106A-1
| Features | Description |
|---|---|
| Device Type | CAT6 U/UTP Indoor LAN Cable |
| Category | Category 6 (CAT6) |
| Bandwidth | 250 MHz |
| Conductor | Solid Bare Copper |
| Wire Gauge | 24 AWG |
| Cable Construction | 4 Pairs (8 Wires) U/UTP with Cross Filler |
| Jacket Material | Lead-Free FR-PVC (CM) |
| Jacket Color | Blue |
| Cable Length | 100 Meters / Easy Box |
| Application | Indoor Structured Cabling, Enterprise Network, CCTV, IP Camera, VoIP, PoE and Gigabit Ethernet Applications |
| Cable Standard | ANSI/TIA-568.2-D Category 6, ISO/IEC 11801:2017 Class E |
|---|---|
| Category | CAT6 U/UTP Indoor |
| Frequency | 250 MHz |
| Conductor Material | Solid Bare Copper |
| Conductor Size | 24 AWG |
| Number of Conductors | 4 Pairs / 8 Wires |
| Insulation Material | HDPE (High Density Polyethylene) |
| Cross Filler | FRPE Cross Filler |
| Outer Jacket | Lead-Free FR-PVC (CM) |
| Cable Diameter | 5.7 ± 0.2 mm |
| SMART FEATURES | |
|---|---|
| Cross Filler Design | Maintains Pair Separation to Reduce Crosstalk and Improve Signal Integrity |
| 250 MHz Performance | Supports Gigabit Ethernet and CAT6 Structured Cabling Applications |
| Solid Copper Conductors | Provide Stable Signal Transmission with Low Attenuation and Long-Term Reliability |
| PoE Ready | Supports IEEE 802.3af and IEEE 802.3at Power over Ethernet Applications |
| UL Verified | UL Listed and Verified for Category 6 Performance with RoHS Compliance |
| GENERAL | |
|---|---|
| Cable Type | CAT6 U/UTP Indoor Cable |
| Impedance | 100 ± 15 Ohms (1 MHz to 250 MHz) |
| DC Resistance | ≤ 9.38 Ω/100m |
| Mutual Capacitance | ≤ 5.6 nF/100m |
| Propagation Delay | ≤ 536 ns/100m @250MHz |
| Delay Skew | ≤ 45 ns |
| Minimum Bend Radius | 4 × Cable Diameter |
| Tensile Strength | 110 N (25 lbf) |
| Installation / Operating Temperature | -20°C to +75°C |
| Storage Temperature | -20°C to +80°C |
| Standards Compliance | ANSI/TIA-568.2-D, ANSI/TIA-568.2-E, ISO/IEC 11801:2017 Class E, EN 50173-1, EN 50288-6-1, IEC 61156-5, UL 444, UL Listed E197771, CSA 22.2 No.214, RoHS |
| Packaging | 100m Easy Box |
| Warranty | 30 Years |
Note: The LINK US-9106A-1 is a 100-meter CAT6 U/UTP indoor LAN cable featuring 24 AWG solid bare copper conductors, 250 MHz bandwidth, an FRPE cross filler, and a lead-free FR-PVC (CM) jacket. It is designed for indoor horizontal structured cabling and supports Gigabit Ethernet, CCTV, IP camera, VoIP, and PoE applications.
Important: The LINK US-9106A-1 provides the same electrical performance as the 305-meter US-9106A model, with the primary difference being its convenient 100-meter Easy Box packaging. It is UL Listed (E197771), RoHS compliant, and suitable for 10/100/1000BASE-T, IEEE 802.3af/at PoE, HDBaseT 2.0, digital audio/video, and structured cabling installations.
จัดจำหน่าย By บริษัทโฟกัส ซิสเต็ม แอนด์ ดีไซน์ ช่างติดเเละซ้อมกล้องวงจรปิด พัทยา ชลบุรี
Datasheet
