| Features |
Description |
| Device Type |
Indoor Horizontal UTP LAN Cable |
| Cable Category |
CAT6 U/UTP Cable |
| Conductor |
Solid Bare Copper 24 AWG |
| Core Count |
4 Pairs (8 Wires) |
| Bandwidth |
250 MHz |
| Cable Construction |
U/UTP with Cross Filler Structure |
| Insulation |
High Density Polyethylene (HDPE) |
| Outer Jacket |
Lead Free FR-PVC Blue Jacket |
| Cable Length |
305 Meter / Reel |
| Application |
Horizontal Cabling, Gigabit Ethernet, PoE, PoE+, Data, Voice, Video and Network Infrastructure |
| Cable Standard |
ANSI/TIA-568.2-E Category 6, ISO/IEC 11801:2017 Class E |
| Category |
Category 6 U/UTP |
| Frequency |
250 MHz |
| Conductor Size |
24 AWG Solid Bare Copper |
| Number of Pairs |
4 Pairs (8 Conductors) |
| Cross Filler |
FRPE Cross Filler for Pair Separation |
| Cable Diameter |
5.7 ± 0.2 mm |
| Characteristic Impedance |
100 ± 15 Ohms |
| Packaging |
305 Meter Reel |
| SMART FEATURES |
| CAT6 Performance |
Supports High-Speed Data Transmission up to Gigabit Ethernet and 2.5G/5G BASE-T Applications |
| Cross Filler Design |
Improves Pair Separation and Reduces Crosstalk for Better Signal Performance |
| PoE Support |
Supports IEEE 802.3af PoE, IEEE 802.3at PoE+ and IEEE 802.3bt Type 4 Applications |
| Flame Retardant Jacket |
FR-PVC Jacket Provides Improved Safety for Indoor Network Installations |
| Reliable Connectivity |
Designed for Data, Voice, Video, VoIP and Structured Cabling Systems |
| GENERAL |
| Cable Type |
CAT6 U/UTP Indoor LAN Cable |
| Installation Method |
Indoor Horizontal Cabling Installation |
| Minimum Bend Radius |
4 × Cable Diameter |
| Installation / Operating Temperature |
-20°C to +75°C |
| Storage Temperature |
-20°C to +80°C |
| Standards Compliance |
ANSI/TIA-568.2-E, ANSI/TIA-568.2-D, ISO/IEC 11801:2017 Class E, EN 50173-1, IEC 61156-5, EN 50288-6-1, ICEA S-102-700, UL 444, UL 1685, CSA 22.2 No.214, RoHS |
| Warranty |
30 Years |

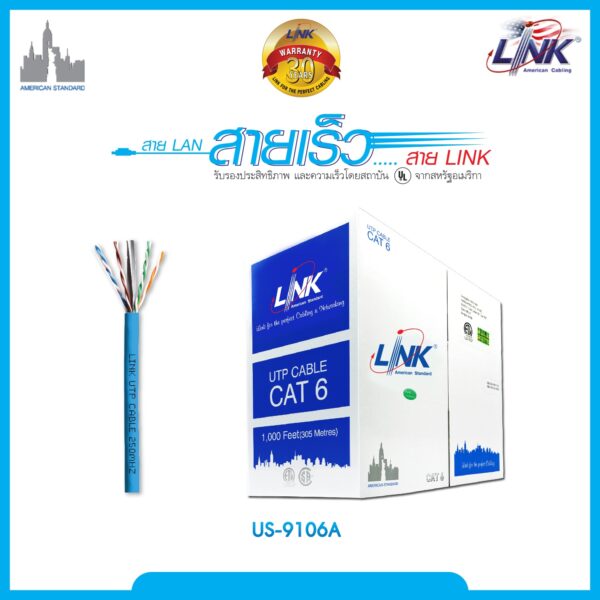

Note: The LINK US-9106A is a CAT6 U/UTP indoor LAN cable featuring 24 AWG solid bare copper conductors, 4-pair construction with cross filler, and 250 MHz bandwidth performance. It is designed for horizontal structured cabling systems and supports high-speed Ethernet, PoE applications and enterprise network installations.
Important: The LINK US-9106A supports Gigabit Ethernet, 2.5G/5G BASE-T, PoE, PoE+ and IEEE 802.3bt Type 4 applications. Its CAT6 performance with 250 MHz bandwidth provides reliable transmission for data, voice, video, VoIP and modern network infrastructure.
