| Features |
Description |
| Device Type |
Indoor UTP LAN Cable |
| Cable Category |
CAT6 U/UTP LSZH Cable |
| Conductor |
Solid Bare Copper 23 AWG |
| Core Count |
4 Pairs (8 Wires) |
| Bandwidth |
250 MHz |
| Cable Construction |
U/UTP with FRPE Cross Filler |
| Insulation |
High Density Polyethylene (HDPE) |
| Outer Jacket |
LSZH White Jacket |
| Cable Length |
100 Meter / Reel in Box |
| Application |
Indoor Horizontal Cabling, Building Backbone, Gigabit Ethernet, 2.5G/5G BASE-T, PoE, PoE+, VoIP, CCTV and Data Networks |
| Cable Standard |
ANSI/TIA-568.2-E Category 6, ISO/IEC 11801:2017 Class E |
| Category |
Category 6 U/UTP LSZH |
| Frequency |
250 MHz |
| Conductor Size |
23 AWG Solid Bare Copper |
| Number of Pairs |
4 Pairs (8 Conductors) |
| Cross Filler |
FRPE Cross Filler |
| Cable Diameter |
Approximately 6 mm |
| Characteristic Impedance |
100 ± 15 Ohms |
| Cable Color |
White |
| Packaging |
100 Meter / Reel in Box |
| SMART FEATURES |
| CAT6 Performance |
Supports High-Speed Network Applications with Bandwidth up to 250 MHz |
| LSZH Jacket |
Low Smoke Zero Halogen Jacket Reduces Toxic Smoke and Corrosive Gas Emissions During Fire |
| Cross Filler Design |
FRPE Cross Filler Separates Cable Pairs to Improve Crosstalk Performance and Signal Stability |
| Solid Bare Copper |
23 AWG Solid Bare Copper Conductors Provide Reliable Signal Transmission and Stable Network Performance |
| PoE Support |
Supports IEEE 802.3af PoE and IEEE 802.3at PoE+ Applications |
| GENERAL |
| Cable Type |
CAT6 U/UTP Indoor LSZH LAN Cable |
| Installation Method |
Indoor Horizontal Cabling and Building Backbone Installation |
| Minimum Bend Radius |
4 × Cable Diameter |
| Installation / Operating Temperature |
-20°C to +60°C |
| Storage Temperature |
-20°C to +80°C |
| Flame Rating |
LSZH |
| Standards Compliance |
ANSI/TIA-568.2-E, ANSI/TIA-568.2-D, ANSI/TIA-568-C.2, ISO/IEC 11801:2017 Class E, EN 50173-1 Category 6, EN 50288-6-1, IEC 61156-5, IEC 60332-1, IEC 60754-1, IEC 60754-2, IEC 61034-1, IEC 61034-2, ICEA S-102-700 Category 6, ASTM D4566-98, NEMA WC 66, UL 444, CSA 22.2 No.214, RoHS |
| Warranty |
30 Years |

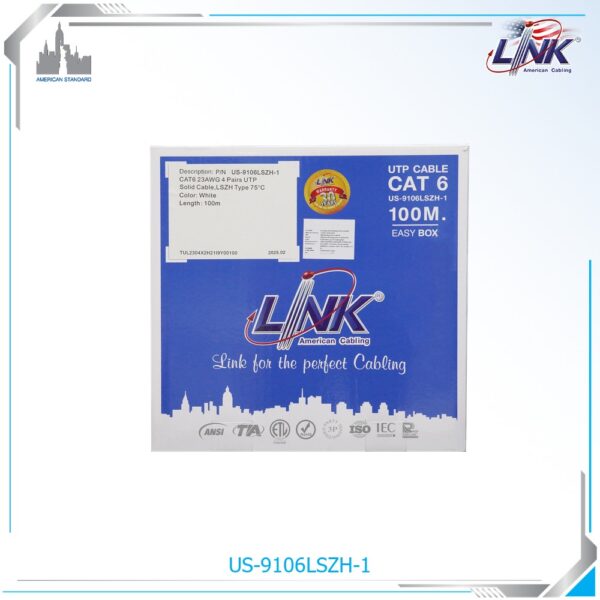

Note: The LINK US-9106LSZH-1 is a CAT6 U/UTP indoor LAN cable featuring 23 AWG solid bare copper conductors, 4-pair construction, FRPE cross filler and 250 MHz bandwidth performance. It uses a Low Smoke Zero Halogen (LSZH) white outer jacket designed to reduce toxic smoke and corrosive gas emissions during fire. The cable is supplied in a 100-meter Reel in Box package.
Important: The LINK US-9106LSZH-1 supports 10/100/1000 BASE-T, 2.5G/5G BASE-T, IEEE 802.3af PoE and IEEE 802.3at PoE+ applications. Its LSZH construction makes it suitable for indoor horizontal cabling, building backbone, VoIP, CCTV and data network installations where low-smoke and halogen-free cable materials are preferred.
