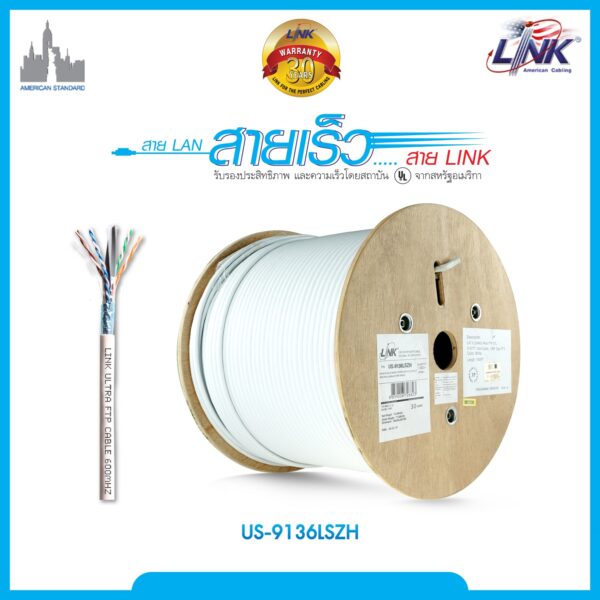

LINK US-9136LSZH
LINK US-9136LSZH
CAT6 F/UTP Ultra Shielded LSZH Network Cable (600MHz, 23AWG)
- Category 6 F/UTP cable with 4 pairs 23AWG solid bare copper conductor
- Supports bandwidth up to 600MHz for high-speed data transmission
- AL-Mylar foil shield with Cross Filler minimizes EMI and crosstalk
- LSZH jacket provides low smoke and zero halogen protection
- Supports 10 Gigabit Ethernet, PoE, PoE+ and HDBaseT applications
- Complies with ANSI/TIA-568.2-D, ISO/IEC 11801 Class E, UL and RoHS standards
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Specifications LINK US-9136LSZH
| Features | Description |
|---|---|
| Device Type | CAT6 F/UTP Ultra Shielded LSZH LAN Cable |
| Category | Category 6 (CAT6) |
| Bandwidth | 600 MHz |
| Conductor | Solid Bare Copper |
| Wire Gauge | 23 AWG |
| Cable Construction | 4 Pairs (8 Wires) F/UTP with Cross Filler |
| Shield Type | Aluminum Mylar Foil Shield with Drain Wire |
| Jacket Material | FR-LSZH (Low Smoke Zero Halogen) |
| Jacket Color | White |
| Cable Length | 305 Meters / Roll |
| Application | Indoor Structured Cabling, Data Center, Enterprise Network, CCTV, IP Camera, VoIP and PoE Applications |
| Cable Standard | ANSI/TIA-568.2-D Category 6, ISO/IEC 11801:2017 Class E |
|---|---|
| Category | CAT6 F/UTP Ultra Shielded |
| Frequency | 600 MHz |
| Conductor Material | Solid Bare Copper |
| Conductor Size | 23 AWG |
| Number of Conductors | 4 Pairs / 8 Wires |
| Insulation Material | HDPE (High Density Polyethylene) |
| Cross Filler | FRPE Cross Filler |
| Shield | Aluminum Mylar Foil with Tinned Copper Drain Wire |
| Outer Jacket | Lead-Free FR-LSZH |
| Cable Diameter | 7.0 mm |
| SMART FEATURES | |
|---|---|
| F/UTP Shielded Design | Foil Shield and Drain Wire Reduce Electromagnetic Interference (EMI) and Improve Signal Stability |
| 600 MHz Ultra Performance | Supports High-Speed Network Applications Including 10 Gigabit Ethernet up to 55 Meters |
| Cross Filler Structure | Maintains Pair Separation to Minimize Crosstalk and Improve Transmission Quality |
| LSZH Safety Jacket | Reduces Smoke and Toxic Halogen Gas Emissions During Fire for Enhanced Indoor Safety |
| PoE Ready | Supports IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt (Type 4) Power over Ethernet Applications |
| GENERAL | |
|---|---|
| Cable Type | CAT6 F/UTP Ultra Shielded LSZH Indoor Cable |
| Impedance | 100 ± 5 Ohms |
| Minimum Bend Radius | 4 × Cable Diameter |
| Tensile Strength | 110 N (25 lbf) |
| Ultimate Breaking Strength | >400 N (90 lbf) |
| Installation / Operating Temperature | -20°C to +60°C |
| Storage Temperature | -20°C to +80°C |
| Standards Compliance | ANSI/TIA-568.2-D, ISO/IEC 11801:2017 Class E, EN 50173-1, EN 50288-5-1, IEC 61156-5, IEC 60332-1, IEC 60754-1/2, IEC 61034-1/2, UL 444, CSA 22.2 No.214, 3P Verified, RoHS |
| Warranty | 30 Years |
Note: The LINK US-9136LSZH is a CAT6 F/UTP Ultra Shielded LAN cable featuring 23 AWG solid bare copper conductors, 600 MHz bandwidth, FRPE cross filler, aluminum foil shielding with drain wire, and a lead-free LSZH jacket. It is designed for indoor structured cabling systems requiring high immunity to electromagnetic interference and reliable high-speed data transmission.
Important: The LINK US-9136LSZH supports 10GBASE-T (up to 55 meters), 2.5G/5GBASE-T, Gigabit Ethernet, IEEE 802.3af/at/bt PoE, VoIP, CCTV, HDBaseT 2.0, and industrial Ethernet applications. Its LSZH jacket minimizes smoke and corrosive gas emissions during fire, making it ideal for offices, hospitals, schools, data centers, and other enclosed public buildings where fire safety and EMI protection are critical.
จัดจำหน่าย By บริษัทโฟกัส ซิสเต็ม แอนด์ ดีไซน์ ช่างติดเเละซ้อมกล้องวงจรปิด พัทยา ชลบุรี
Datasheet
