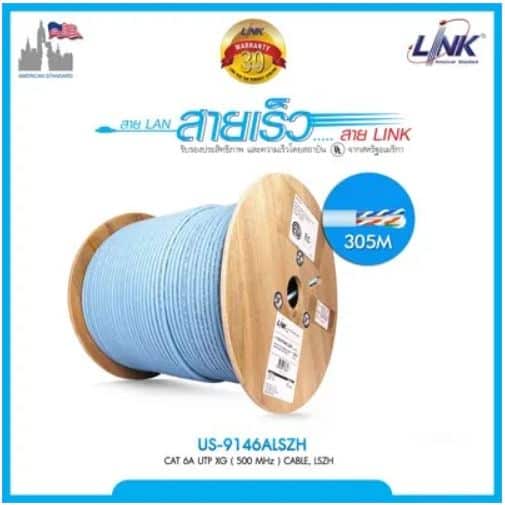

Specifications LINK US-9146ALSZH
| Features | Description |
|---|---|
| Product Type | CAT 6A UTP XG Cable |
| Category | Category 6A |
| Bandwidth | 500 MHz |
| Transmission Speed | Up to 10 Gbps Ethernet |
| Conductor | 23 AWG Solid Bare Copper |
| Insulation | HDPE |
| Cross Filler | FRPE |
| Jacket | FR-LSZH (Low Smoke Zero Halogen) |
| Cable Type | U/UTP Unshielded |
| Color | Aqua Blue |
| Cable Diameter | Approx. 8.3 mm |
| Length | 305 m / Roll |
| Minimum Bending Radius | 4 × Cable Diameter |
| Tensile Strength | 110 N (25 lbf) |
| Installation / Operating Temperature | -20°C to 75°C |
| Storage Temperature | -20°C to 80°C |
| Impedance | 100 ± 15 Ω, 1 MHz to 500 MHz |
| Standards | ANSI/TIA-568.2-D Category 6A, ISO/IEC 11801:2017 Class EA, EN 50173-1, IEC 61156-5 |
| Compliance | RoHS Compliant |
| Application | Description |
|---|---|
| Structured Cabling | Suitable for horizontal and building backbone structured cabling systems. |
| 10G Ethernet | Supports 10G BASE-T Ethernet applications up to 10 Gbps. |
| High-Speed Network | Suitable for 2.5G/5G BASE-T and 10/100/1000 BASE-T network systems. |
| PoE System | Supports IEEE 802.3af PoE, 802.3at PoE+ and 802.3bt Type 4 applications. |
| Data, Video & Audio | Suitable for digital and analog data, video and audio transmission applications. |
| VoIP / HDBaseT | Suitable for VoIP, HDBaseT and other high-speed communication systems. |
Note: The LINK US-9146ALSZH is a CAT 6A UTP XG Cable with 500 MHz bandwidth, 23 AWG solid bare copper conductor and LSZH jacket. It is supplied in a 305-meter roll.
Important: The US-9146ALSZH is an unshielded CAT 6A cable designed for high-speed network applications, supporting 10G BASE-T and PoE/PoE+/4PPoE systems.
