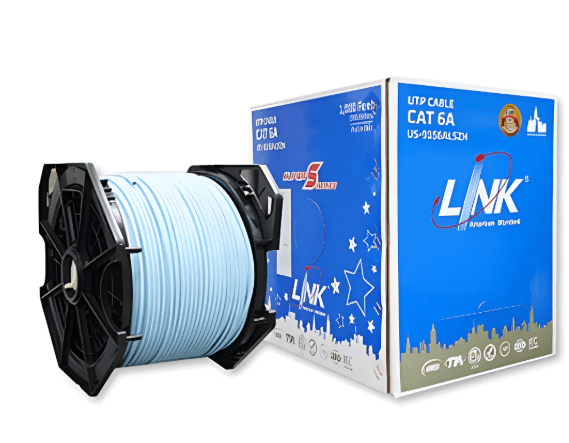

CAT6A UTP SUPER-S LSZH Network Cable (500MHz, 23AWG)

  • Category 6A U/UTP cable with 4 pairs 23AWG solid bare copper conductor
  • Supports bandwidth up to 500MHz for high-speed data transmission
  • Protection Barrier Tape and Cross Filler minimize alien crosstalk and EMI
  • LSZH jacket provides low smoke and zero halogen protection
  • Supports 10 Gigabit Ethernet, PoE, PoE+, PoE++ and HDBaseT applications
  • Complies with ANSI/TIA-568.2-D, ISO/IEC 11801 Class EA, UL and RoHS standards
หมวดหมู่: , , ป้ายกำกับ:
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

Specifications LINK US-9156ALSZH

Features Description
Device Type CAT6A U/UTP SUPER-S Indoor LAN Cable
Category Category 6A (CAT6A)
Bandwidth 500 MHz
Conductor Solid Bare Copper
Wire Gauge 23 AWG
Cable Construction 4 Pairs (8 Wires) U/UTP with Cross Filler and Protection Barrier Tape
Jacket Material Lead-Free FR-LSZH (Low Smoke Zero Halogen)
Jacket Color Aqua Blue
Cable Length 305 Meters / Pull Box
Application Indoor Structured Cabling, Data Center, Enterprise Network, CCTV, IP Camera, VoIP, PoE and 10 Gigabit Ethernet Applications
Cable Standard ANSI/TIA-568.2-D Category 6A, ISO/IEC 11801:2017 Class EA
Category CAT6A U/UTP SUPER-S
Frequency 500 MHz
Conductor Material Solid Bare Copper
Conductor Size 23 AWG
Number of Conductors 4 Pairs / 8 Wires
Insulation Material HDPE (High Density Polyethylene)
Cross Filler FRPE Cross Filler
Wrapping Protection Barrier Tape
Outer Jacket Lead-Free FR-LSZH
Cable Diameter 7.0 ± 0.2 mm
SMART FEATURES
SUPER-S Technology Protection Barrier Tape Helps Reduce Alien Crosstalk While Maintaining a Smaller Cable Diameter
500 MHz CAT6A Performance Supports 10 Gigabit Ethernet and High-Speed Network Applications up to CAT6A Requirements
Small Diameter Design Reduces Cable Pathway Space, Improves Airflow and Simplifies Installation in High-Density Cabling Systems
LSZH Safety Jacket Produces Low Smoke and Zero Halogen Emissions for Enhanced Fire Safety in Indoor Environments
PoE Ready Supports IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt (Type 4) Power over Ethernet Applications
GENERAL
Cable Type CAT6A U/UTP SUPER-S LSZH Indoor Cable
Impedance 100 ± 5 Ohms (1 MHz to 500 MHz)
DC Resistance ≤ 9.38 Ω/100m
Mutual Capacitance ≤ 5.6 nF/100m
Propagation Delay ≤ 534 ns/100m
Delay Skew ≤ 40 ns
Minimum Bend Radius 8 × Cable Diameter
Tensile Strength 110 N (25 lbf)
Installation / Operating Temperature -20°C to +75°C
Storage Temperature -20°C to +80°C
Standards Compliance ANSI/TIA-568.2-D, ANSI/TIA-568-C.2 Category 6A, ISO/IEC 11801:2017 Class EA, EN 50173-1, EN 50288-11-1, IEC 61156-5, IEC 60332-1, IEC 60754-1/2, IEC 61034-1/2, UL 444/NEC 800, 3P Verified, RoHS
Packaging 305m Pull Box
Warranty 30 Years

Note: The LINK US-9156ALSZH is a CAT6A U/UTP SUPER-S indoor LAN cable featuring 23 AWG solid bare copper conductors, 500 MHz bandwidth, Protection Barrier Tape technology, FRPE cross filler, and a lead-free LSZH jacket. Its compact 7.0 mm diameter is designed to reduce alien crosstalk while simplifying installation in high-density structured cabling systems.

Important: The LINK US-9156ALSZH supports 10GBASE-T, 2.5G/5GBASE-T, Gigabit Ethernet, IEEE 802.3af/at/bt PoE, HDBaseT 2.0, EtherCAT, VoIP, CCTV, and other high-speed data, video, and audio applications. Its SUPER-S design provides improved transmission performance, reduced cable bundle size, and enhanced fire safety through its LSZH jacket, making it ideal for enterprise networks, hospitals, schools, and data centers.
