| Features |
Description |
| Product Type |
CAT6A U/FTP SUPER-S Series Cable |
| Category |
Category 6A |
| Frequency |
Up to 500 MHz |
| Shielding |
U/FTP, Individual Pair Shielded |
| Conductor |
23 AWG Solid Bare Copper |
| Number of Conductors |
4 Pairs (8 Wires) |
| Individual Shield |
Al-Mylar Tape |
| Drain Wire |
24 AWG Stranded Tinned Copper |
| Insulation |
Foam-Skin PE |
| Jacket |
Lead-Free FR-LSZH |
| Cable Diameter |
6.8 ± 0.2 mm |
| Color |
Aqua Blue |
| Length |
305 m / Box |
| 10GBASE-T |
Supported |
| 2.5G/5GBASE-T |
Supported |
| PoE |
IEEE 802.3af / 802.3at / 802.3bt Supported |
| CABLE CONSTRUCTION |
| Conductor |
23 AWG Solid Bare Copper |
| Number of Pairs |
4 Pairs / 8 Wires |
| Insulation |
Foam-Skin PE |
| Individual Shield |
Al-Mylar Tape |
| Drain Wire |
24 AWG Stranded Tinned Copper |
| Rip Cord |
Under Jacket |
| Jacket |
Lead-Free FR-LSZH |
| Cable Diameter |
6.8 ± 0.2 mm |
| Jacket Color |
Aqua Blue |
| ELECTRICAL CHARACTERISTICS |
| Impedance |
100 ± 15 Ohms, 1 MHz to 500 MHz |
| Mutual Capacitance |
≤ 5.6 nF Max. / 100 m |
| Capacitance Unbalance |
≤ 160 pF Max. / 100 m |
| DC Resistance |
≤ 9.38 Ohms Max. / 100 m |
| DC Resistance Unbalance |
4% Max. |
| Insulation Resistance |
≥ 5000 MΩ/km |
| Propagation Delay |
≤ 536 ns / 100 m Max. @ 500 MHz |
| Delay Skew |
≤ 45 ns Max. |
| NVP |
78% |
| MECHANICAL & ENVIRONMENTAL |
| Tensile Strength |
110 N (25 lbf) |
| Ultimate Breaking Strength |
> 400 N (90 lbf) |
| Minimum Bending Radius |
8 × Cable Diameter |
| Installation / Operating Temperature |
-20°C to +75°C |
| Storage Temperature |
-20°C to +80°C |
| Flame Rating |
LSZH (Low Smoke Zero Halogen) |
| STANDARDS & APPLICATION |
| ANSI/TIA |
ANSI/TIA-568.2-E Category 6A |
| ISO/IEC |
ISO/IEC 11801:2017 Class EA |
| EN Standard |
EN 50173-1 Category 6A |
| IEC Standard |
IEC 61156-5 / IEC 60332-1 / IEC 60754-1 / IEC 60754-2 / IEC 61034-1 / IEC 61034-2 |
| Ethernet |
10/100/1000BASE-T / 2.5GBASE-T / 5GBASE-T / 10GBASE-T |
| PoE |
IEEE 802.3af / 802.3at / 802.3bt |
| Compliance |
RoHS |

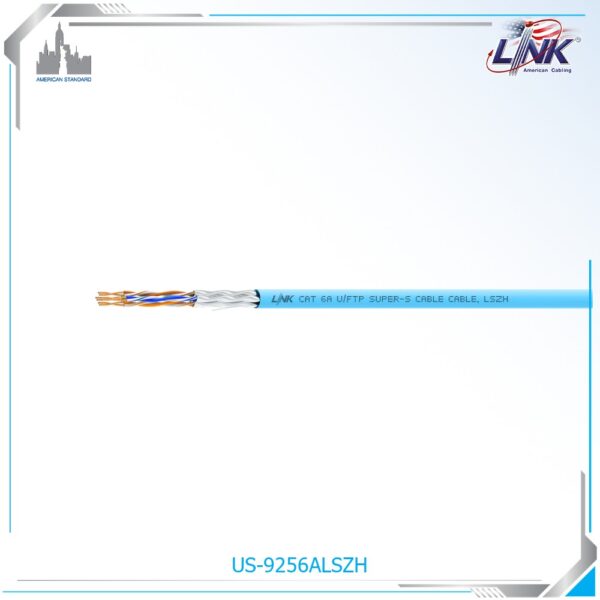

Note: The LINK US-9256ALSZH is a CAT6A U/FTP SUPER-S Series cable featuring 23 AWG solid bare copper conductors, individually shielded pairs with Al-Mylar tape, a lead-free FR-LSZH jacket, 500 MHz bandwidth, and a compact 6.8 mm cable diameter. It supports 10GBASE-T, 2.5GBASE-T, 5GBASE-T, and IEEE 802.3af/at/bt PoE applications.
