| Features |
Description |
| Product Type |
10/100Mbps Single Fiber Optic Media Converter |
| Function |
Transmitter |
| Fiber Port |
1 x Simplex SC, Single-Mode |
| Fiber Type |
Single-Mode, Single Fiber (WDM) |
| Fiber Standard |
100Base-FX |
| Fiber Distance |
Up to 20 km |
| RJ45 Port |
1 x 10/100Base-TX RJ45 |
| RJ45 Distance |
Up to 100 m |
| Transmission Speed |
10/100 Mbps |
| Duplex Mode |
Full/Half Duplex |
| Wavelength |
TX: 1310 nm / RX: 1550 nm |
| Transmit Power |
-14 to -8 dBm |
| Receiver Sensitivity |
-31 dBm |
| NETWORK FEATURES |
Description |
| Auto-Negotiation |
Supported |
| Auto MDI/MDI-X |
Supported |
| Flow Control |
IEEE 802.3x |
| VLAN |
IEEE 802.1Q Packet Pass-Through |
| QoS |
IEEE 802.1p Packet Pass-Through |
| STP |
IEEE 802.1d Packet Pass-Through |
| Packet Size |
Up to 9 KB |
| Link Fault Signaling (LFS) |
Supported |
| Local Loopback (LLB) |
Supported |
| Remote Loopback (RLB) |
Supported |
| DIP Switch |
Manual Configuration of Enhanced Functions |
| STANDARDS |
Description |
| IEEE 802.3 |
10Base-T |
| IEEE 802.3u |
100Base-TX / 100Base-FX |
| EMI |
FCC Part 15 Class A, CE, EN 55032 Class A |
| EMS |
EN 55024 / IEC/EN 61000-4 Series |
| RoHS |
Compliant |
| GENERAL |
Description |
| Power Input |
12 VDC |
| Power Adapter |
100-240 VAC, 50-60 Hz to 12 VDC / 1 A |
| Power Consumption |
2.8 W |
| Housing |
Metal |
| Dimensions |
73.8 mm x 23.4 mm x 109.2 mm |
| Weight |
138 g |
| Mounting |
Desktop, Chassis Compatible |
| Operating Temperature |
0°C to 50°C |
| Storage Temperature |
-25°C to 70°C |
| Operating Humidity |
10% to 95% RH, non-condensing |
| Storage Humidity |
5% to 95% RH, non-condensing |

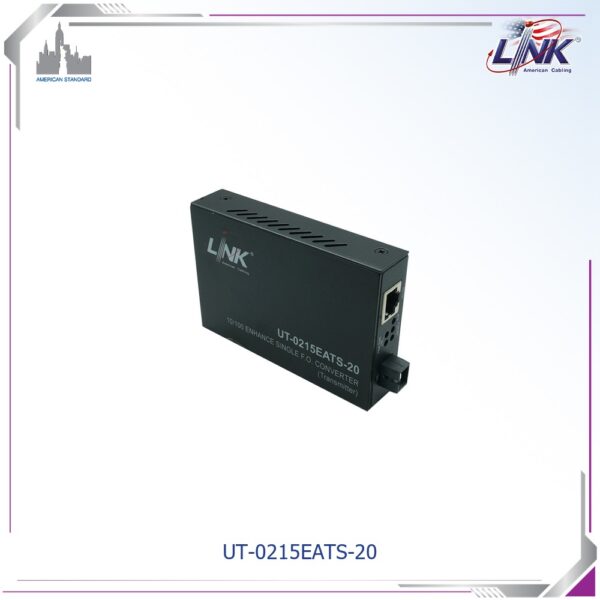

Note: The LINK UT-0215EATS-20 is a 10/100Mbps Single Fiber Optic Media Converter operating as a transmitter. It features 1 x 10/100Base-TX RJ45 port and 1 x Simplex SC Single-Mode fiber port, supporting transmission up to 20 km over a single fiber core using WDM technology.
Important: The UT-0215EATS-20 operates at TX 1310 nm / RX 1550 nm and is designed to work with the matching UT-0215EARS-20 receiver, which uses the opposite wavelength configuration. It supports VLAN, QoS, STP, LFS, LLB, RLB, Auto MDI/MDI-X, and DIP-switch configuration.
