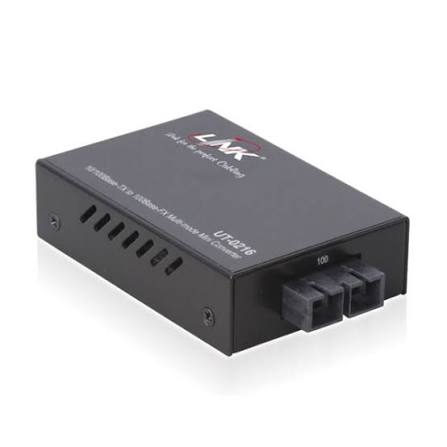

Specifications LINK UT-0216-SM30
| Features | Specifications |
|---|---|
Product Overview |
|
| Product Type | 10/100 Mbps Mini Fiber Optic Media Converter |
| Model | UT-0216-SM30 |
| Fiber Type | Single-Mode Fiber (SM) |
| Fiber Connector | SC Duplex |
| Maximum Fiber Transmission Distance | Up to 30 km |
| Installation | Indoor Use Only |
| Standards | IEEE 802.3 and IEEE 802.3u |
Network Interfaces |
|
| Copper Port | 1 x 10/100Base-TX RJ45 |
| Fiber Port | 1 x 100Base-FX SC Duplex |
| RJ45 Transmission Speed | 10/100 Mbps |
| Fiber Transmission Speed | 100 Mbps |
| Maximum UTP Cable Distance | Up to 100 meters using CAT 5/5E/6 cable |
| Auto-Negotiation | Supported on RJ45 port |
| Auto MDI/MDI-X | Supported on RJ45 port |
LED Indicators |
|
| LED Indicators | PWR, TX LNK/ACT, FX LNK/ACT and 100M |
| Power Status | PWR LED |
| Network Status | TX LNK/ACT and FX LNK/ACT |
| Speed Status | 100M LED |
Power Specifications |
|
| Power Input | 12V DC via DC Jack |
| Power Adapter | 100–240V AC, 47/63Hz input; 12V DC/1A output |
| Maximum Power Consumption | 2.8W |
Mechanical and Environmental Specifications |
|
| Housing | Compact Mini Converter |
| Dimensions (D x W x H) | 86.6 x 59.4 x 23.4 mm |
| Weight | 180 g |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -25°C to 70°C |
| Operating Humidity | 10% to 80% RH |
| Storage Humidity | 5% to 90% RH |
Certifications |
|
| EMI | FCC Part 15 Class A and CE Approved |
| Warranty | 3 Years |
Note: The LINK UT-0216-SM30 is a 10/100 Mbps Mini Fiber Optic Media Converter designed to convert Ethernet signals between RJ45 copper cabling and single-mode fiber optic cabling. It supports transmission distances of up to 30 km.
Important: This model is designed for indoor use and requires single-mode fiber with an SC duplex connector. Verify fiber compatibility and network configuration before installation.
