| Features |
Description |
| Product Type |
1000Mbps Mini Fiber Optic Media Converter |
| Fiber Port |
1 x 1000Base-X SFP Slot |
| Fiber Connector |
LC via SFP Module |
| Fiber Distance |
Up to 120 km, Depending on SFP Module |
| RJ45 Port |
1 x 1000Base-T |
| RJ45 Speed |
Up to 1000 Mbps |
| RJ45 Distance |
Up to 100 m |
| Duplex Mode |
Full/Half Duplex |
| Auto-Negotiation |
Supported |
| Auto MDI/MDI-X |
Supported |
| Flow Control |
IEEE 802.3x |
| NETWORK FEATURES |
Description |
| VLAN |
IEEE 802.1Q Packet Pass-Through |
| QoS |
IEEE 802.1p Packet Pass-Through |
| STP |
IEEE 802.1d Packet Pass-Through |
| Link Fault Signaling |
Supported |
| LED Indicators |
PWR, 1000, LNK/ACT |
| STANDARDS |
Description |
| IEEE 802.3ab |
1000Base-T |
| IEEE 802.3z |
1000Base-X |
| EMC |
FCC Part 15 Class A, CE |
| RoHS |
Compliant |
| GENERAL |
Description |
| Power Input |
12 VDC, DC Jack |
| Power Adapter |
100-240 VAC, 50-60 Hz to 12 VDC / 1 A |
| Power Consumption |
1.6 W |
| Housing |
Metal |
| Dimensions |
86.2 mm x 23.4 mm x 59.4 mm |
| Weight |
180 g |
| Mounting |
Desktop |
| Operating Temperature |
0°C to 50°C |
| Storage Temperature |
-20°C to 70°C |
| Operating Humidity |
10% to 90% RH, non-condensing |
| Storage Humidity |
5% to 90% RH, non-condensing |

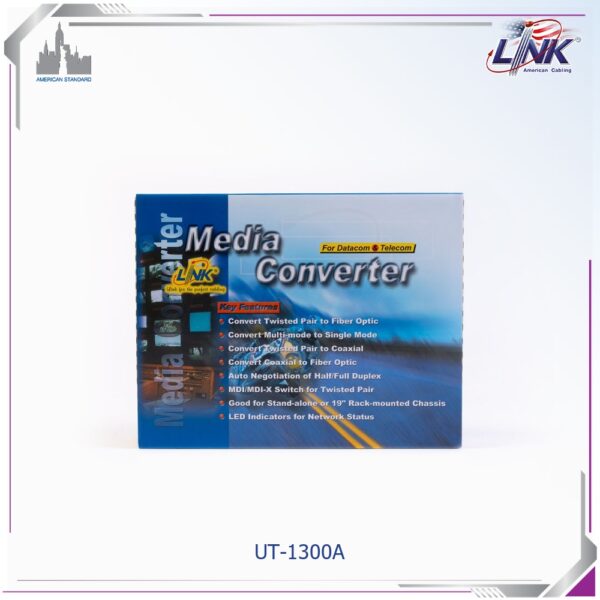

Note: The LINK UT-1300A is a 1000Mbps Mini Fiber Optic Media Converter featuring 1 x 1000Base-T RJ45 port and 1 x 1000Base-X SFP slot. It supports Gigabit Ethernet fiber connectivity with transmission distances depending on the installed SFP module, including up to 2 km with Multi-Mode and up to 120 km with Single-Mode.
Important: The UT-1300A is supplied with a 12VDC / 1A AC adapter and supports VLAN, QoS, STP, IEEE 802.3x Flow Control, Auto MDI/MDI-X, and Auto-Negotiation. The SFP module is not included.
