| Features |
Description |
| Product Type |
10/100/1000Mbps Hardened Fiber Optic Media Converter |
| Fiber Port |
1 x 100Base-FX / 1000Base-X SFP Slot |
| Fiber Connector |
LC via SFP Module |
| Fiber Type |
Depends on SFP Module (Multi-Mode or Single-Mode) |
| Fiber Distance |
Up to 120 km, Depending on SFP Module |
| RJ45 Port |
1 x 10/100/1000Base-T |
| RJ45 Speed |
10/100/1000 Mbps |
| RJ45 Distance |
Up to 100 m |
| Duplex Mode |
Full/Half Duplex |
| Auto-Negotiation |
Supported |
| Auto MDI/MDI-X |
Supported |
| Flow Control |
IEEE 802.3x |
| ENHANCED FEATURES |
Description |
| Link Fault Signaling (LFS) |
Supported |
| Local Loopback (LLB) |
Supported |
| Remote Loopback (RLB) |
Supported |
| 100FX SFP |
Supported |
| Packet Size |
Up to 9 KB |
| Packet Buffer |
512 KB |
| MAC Address Table |
1K Entries |
| DIP Switch |
LFS, LLB, RLB and 100FX SFP Configuration |
| STANDARDS |
Description |
| IEEE 802.3 |
10Base-T |
| IEEE 802.3u |
100Base-TX / 100Base-FX |
| IEEE 802.3ab |
1000Base-T |
| IEEE 802.3z |
1000Base-X (SX/LX) |
| IEEE 802.3x |
Flow Control |
| EMI/EMS |
FCC Part 15 Class A, CE, EN 55032 Class A, IEC/EN 61000-4 Series |
| RoHS |
Compliant |
| GENERAL |
Description |
| Power Input |
12 VDC, DC Jack |
| Power Consumption |
6 W |
| Power Adapter |
100-240 VAC, 50-60 Hz, 12 VDC / 1.5 A |
| Housing |
Aluminum, IP30 Protection |
| Dimensions |
73.8 mm x 23.4 mm x 109.2 mm |
| Weight |
150 g |
| Mounting |
Desktop, DIN-Rail, Wall-Mounted, Chassis Compatible |
| Operating Temperature |
-10°C to 60°C |
| Storage Temperature |
-40°C to 85°C |
| Operating Humidity |
5% to 95% RH, non-condensing |
| Storage Humidity |
5% to 95% RH, non-condensing |
| LED Indicators |
PWR, Fiber, RJ45, 1000, LNK/ACT, ALM (LFS) |

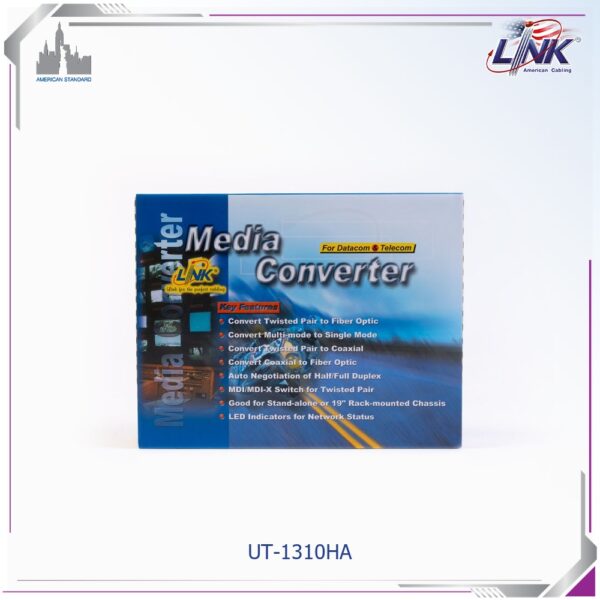

Note: The LINK UT-1310HA is a 10/100/1000Mbps Hardened Fiber Optic Media Converter featuring 1 x 10/100/1000Base-T RJ45 port and 1 x 100Base-FX/1000Base-X SFP slot. It supports both Multi-Mode and Single-Mode fiber depending on the installed SFP module, with transmission distances up to 120 km.
Important: The UT-1310HA is designed for rugged environments and supports operating temperatures from -10°C to 60°C. It features an IP30 aluminum housing, DIN-Rail and wall mounting, LFS, Local/Remote Loopback, 100FX SFP support, and up to 9 KB packet size.
