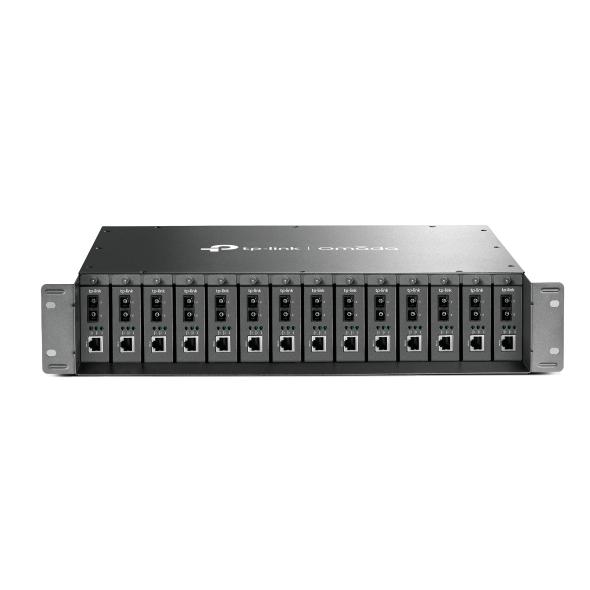

Specifications TP-Link MC1400
| Features | Specifications |
|---|---|
| Product Type | 14-Slot Rackmount Chassis for Media Converters |
| Model | MC1400 |
| Media Converter Capacity | Up to 14 Media Converters |
| Rack Mounting | Standard 19-inch Rack, 2U Height |
| Power Supply Input | 100–240V AC, 50/60Hz |
| DC Power Output | 14 × 9V DC Outputs |
| Power Supply Redundancy | Optional Redundant Power Supply |
| Hot-Swappable | Supported for Media Converters and Compatible Power Supply |
| Cooling System | Built-in Cooling Fans |
| Protection | Over-voltage and Over-current Protection |
| Power Isolation | Electrical Isolation for Each Media Converter Slot |
| Compatible Media Converters | TP-Link MC Series Media Converters, Version 2.0 and Above |
| Dimensions (W × D × H) | 482 × 309 × 86 mm |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10–90% RH, Non-condensing |
| Storage Humidity | 5–90% RH, Non-condensing |
Important: The MC1400 is designed to centralize power and mount up to 14 compatible TP-Link media converters. Compatibility depends on the media converter hardware version. Please verify the chassis revision before installation.
