Specifications Ruijie Reyee MF6000M-16FS8GT2XS
| Features | Description |
|---|---|
| Product Type | e-Lighten 10G Layer 3 Managed Switch Line Card |
| Compatible Chassis | RG-NBF6002M |
| PON/SFP Ports | 16 × 1G PON/SFP |
| Ethernet Ports | 8 × 10/100/1000BASE-T RJ45 |
| Uplink Ports | 2 × 10G SFP+ |
| Switching Capacity | 216 Gbps |
| Forwarding Rate | 132 Mpps |
| Layer | Layer 3 |
| PORTS | |
|---|---|
| PON/SFP Ports | 16 × 1G PON/SFP |
| Ethernet Ports | 8 × 10/100/1000BASE-T RJ45 |
| 10G Uplink Ports | 2 × SFP+ |
| Optical Auto-Sensing | PON/Ethernet Optical Transceiver Auto-Sensing |
| PON | |
|---|---|
| PON Type | 1G PON |
| Total PON Ports | 16 |
| Maximum ONUs per PON Port | 32 |
| Maximum ONUs | 320 |
| 2.5G PON | Not Supported |
| 10G PON | Not Supported |
| Registration Distance | 5 km Default, Up to 10 km Maximum |
| RTT Distance Measurement | Supported |
| ONU Isolation | Layer 2 Isolation for ONUs on the Same PON Port |
| SBA | Static Bandwidth Allocation |
| DBA | Dynamic Bandwidth Allocation |
| SWITCHING | |
|---|---|
| Switching Capacity | 216 Gbps |
| Forwarding Rate | 132 Mpps |
| MAC Address Table | 32,000 |
| VLAN | Up to 4,094 VLANs |
| Static MAC | Supported |
| MAC Address Filtering | Up to 256 |
| IGMP Snooping | Supported |
| RLDP | Ruijie Rapid Link Detection Protocol |
| Mirroring | N:1 Mirroring |
| LAYER 3 | |
|---|---|
| Layer 3 Support | Supported |
| SVI | Up to 64 |
| Layer 3 Aggregation | Up to 16 |
| DHCP Server | Supported |
| IPv6 | Supported |
| ARP Table | Up to 4,000 |
| SECURITY & QOS | |
|---|---|
| IP Standard ACL | Supported |
| MAC Extended ACL | Supported |
| IP Extended ACL | Supported |
| Layer 2 Interface ACL | Supported |
| CPU Protection | Hardware-Based CPU Protection Policy (CPP) |
| Rate Limiting | Port-Level Ingress/Egress Rate Limiting |
| PON MANAGEMENT | |
|---|---|
| OLT Optical Monitoring | Temperature, Voltage, Current, Tx Power, Rx Power and Port Mode |
| ONU Optical Monitoring | Temperature, Voltage, Current, Tx Power, Rx Power and Port Mode |
| ONU Optical Alarm | Abnormal Temperature, Voltage, Current and Tx/Rx Power Detection |
| ONU Auto Connection | Supported |
| PON Fault Management | Optical Status Monitoring and Exception Reporting |
| PHYSICAL & ENVIRONMENT | |
|---|---|
| Power Consumption | < 36.4 W |
| Dimensions | 227 × 210 × 40.3 mm |
| Net Weight | 0.95 kg |
| Hot Swapping | Not Supported |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| MTBF | > 200,000 Hours |
| Certification | CQC |

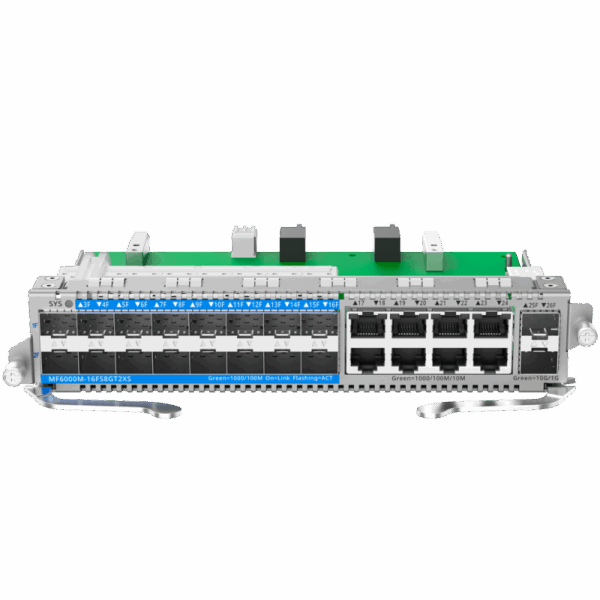

Note: The MF6000M-16FS8GT2XS is a line card designed for the Ruijie Reyee RG-NBF6002M e-Lighten Layer 3 Managed Switch. It provides 16 × 1G PON/SFP ports, 8 × Gigabit Ethernet ports and 2 × 10G SFP+ uplink ports.
Important: The MF6000M-16FS8GT2XS is a modular line card and requires the RG-NBF6002M chassis for operation. The chassis and power modules are not included with the line card.
