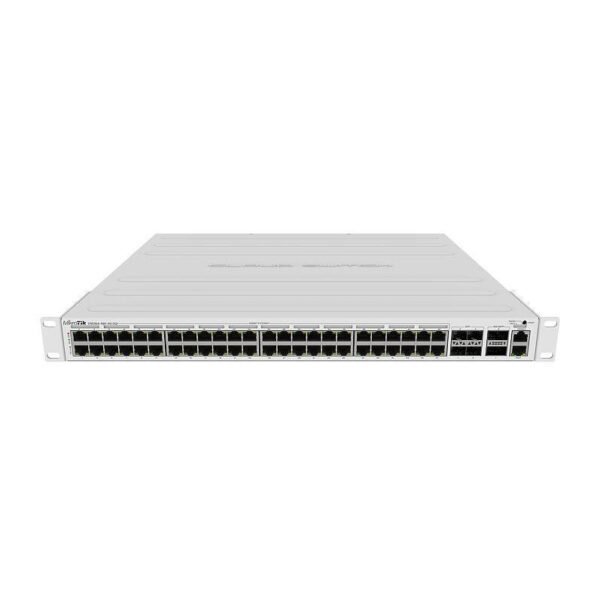

MikroTik CRS354-48P-4S+2Q+RM
Mikrotik รุ่น CRS354-48P-4S+2Q+RM
คุณสมบัติ
- Mikrotik Cloud Router PoE Switch CRS354-48P-4S+2Q+RM
- Port Lan 48 Port 1Gbps, 2 Port QSFP+ 40Gbps,4 Port SFP+ 10Gigabit
- จ่ายไฟ POE 48 Port มาตรฐาน 802.3af/at กำลังไฟรวมสูงสุด 700W
- รองรับ L2-L3 Managed Switch
- พร้อม Port QSFP+ ความเร็วสูงสุด 40Gbps
- รองรับ throughput ได้ถึง 168Gbps และ switching capacity ได้ถึง 336Gbps พร้อม forwarding rate ความเร็ว 235Mpps
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Specifications
Details | |
---|---|
Product code | CRS354-48P-4S+2Q+RM |
Architecture | MIPSBE |
CPU | QCA9531 |
CPU core count | 1 |
CPU nominal frequency | 650 MHz |
Dimensions | 443 x 382 x 44 mm |
License level | 5 |
Operating System | RouterOS |
Size of RAM | 64 MB |
Storage size | 16 MB |
Storage type | FLASH |
Tested ambient temperature | -20°C to 60°C |
Powering
Details | |
---|---|
Number of AC inputs | 1 |
AC input range | 100-240 |
Max power consumption | 800 W |
Max power consumption without attachments | 85 W |
PoE-out
Details | |
---|---|
PoE-out ports | Ether1-Ether48 |
PoE out | 802.3af/at |
Max out per port output (input < 30 V) | 1000 mA |
Max out per port output (input > 30 V) | 570 mA |
Total output current | 27A at 26V OR 13.2A at 53V |
Total output power | 700W |
Ethernet
Details | |
---|---|
10/100 Ethernet ports | 1 |
10/100/1000 Ethernet ports | 48 |
Fiber
Details | |
---|---|
SFP+ ports | 4 |
Number of 40G QSFP+ ports | 2 |
Peripherals
Details | |
---|---|
Serial port | RJ45 |
Other
Details | |
---|---|
CPU temperature monitor | Yes |
Current Monitor | Yes |
PCB temperature monitor | Yes |
Voltage Monitor | Yes |
Certification & Approvals
Details | |
---|---|
Certification | CE/RED, EAC, ROHS |
