Specifications UNV MW3575-U-C
| Features | Specifications |
|---|---|
Display |
|
| Product Type | Smart Interactive Display |
| Panel Size | 75 inches |
| Backlight | DLED |
| Resolution | 3840 × 2160 (4K UHD) |
| Brightness | 350 cd/m² |
| Contrast Ratio | 1200:1 |
| Response Time | 8 ms |
| Refresh Rate | 60 Hz |
| Color Support | 1.07 billion colors |
| Viewing Angle | 178° Horizontal / 178° Vertical |
| Color Gamut | 72% |
| Lifespan | 50,000 hours |
| Surface Hardness | 9H (7 on Mohs scale) |
| Haze Value | 25% |
| Glass | 4 mm Tempered Anti-Glare Glass |
Touch |
|
| Touch Technology | Infrared Touch |
| Touch Control | Up to 32-point touch and 20-point writing |
| Touch Precision | ±1 mm |
| Touch Response Time | ≤6 ms |
| Recognizable Object | 5 points, 2 mm |
| Touch Input | Opaque Objects such as Fingers and Pens |
System |
|
| Processor | Amlogic T982, Quad-Core ARM Cortex-A55 |
| CPU Frequency | 1.9 GHz |
| GPU | Mali-G52 |
| RAM | 4 GB DDR4 |
| Storage | 32 GB eMMC |
| Operating System | Android 13.0 |
Video Input & Output |
|
| HDMI Input | 3 × HDMI IN, up to 4K |
| VGA Input | 1 × VGA IN |
| AV Input | 1 × AV IN |
| YPbPr Input | 1 × YPbPr IN |
| DisplayPort Input | 1 × DP IN |
| HDMI Output | 1 × HDMI OUT, up to 4K |
| AV Output | 1 × AV OUT |
Audio |
|
| Audio Input | 1 × MIC IN |
| Audio Output | 1 × Earphone, 1 × Coaxial Audio Output |
| Speaker | 2 × Treble 5W + 2 × Bass 15W |
| Speaker Output | 40W Total |
Interfaces |
|
| USB 3.0 | 3 × Front USB 3.0 |
| USB 2.0 | 1 × On-board USB 2.0 |
| USB 3.0 | 1 × On-board USB 3.0 |
| Touch USB | 2 × Touch USB |
| USB Type-C | 1 × Type-C |
| TF Card | 1 × TF Card Slot |
| RS232 | 1 × RS232 |
Network & Wireless |
|
| LAN Interface | 1 × LAN IN, 1 × LAN OUT |
| Wi-Fi | Wi-Fi 5 + Wi-Fi 6, 2.4 GHz / 5 GHz |
| Wi-Fi Coverage | Approx. 30 m² |
| Wi-Fi Transmission Distance | Up to 20 m in open space |
| Bluetooth | Bluetooth 5.2 |
| Bluetooth Distance | Up to 12 m in open space |
Interactive Features |
|
| Screen Mirroring | Wireless Screen Mirroring |
| Annotation | On-Screen Annotation Tools |
| Screenshot | Built-in Screenshot Function |
| Whiteboard | Interactive Whiteboard with Split-Screen Writing |
| OCR | Text and Graphic Recognition |
| File Transfer | QR Code File Transfer |
| System Update | OTA Remote Upgrade |
Mounting |
|
| VESA Mount | 600 × 400 mm |
| Mounting Screw | 4 × M8 Screw Holes |
| Installation | Wall Mounting |
General |
|
| Power Supply | AC 100–240V, 50/60Hz |
| Power Consumption | 291.5W, without OPS |
| Standby Power Consumption | <0.5W |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Storage Temperature | -20°C to 60°C |
| Storage Humidity | 0% to 95% RH, non-condensing |
| Product Dimensions | 1720 × 1035 × 89 mm |
| Net Weight | 53.0 kg |
| Gross Weight | 60.5 kg |
Accessories |
|
| Included Accessories | Power Cable, 2 × Touch Pens, Quick Guide, IR Remote Controller and Wall Mounting Bracket |

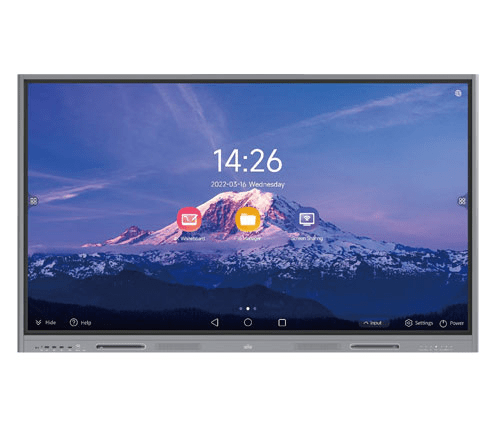

Note: The UNV MW3575-U-C is a 75-inch 4K Smart Interactive Display designed for interactive presentation, education, collaboration and professional display applications. It features a 3840 × 2160 resolution, 60 Hz refresh rate, infrared touch technology with up to 32-point touch and 20-point writing, and a 4 mm tempered anti-glare glass surface. The display is powered by an Amlogic T982 quad-core processor with 4 GB DDR4 RAM, 32 GB eMMC storage and Android 13.0. It provides multiple HDMI, VGA, DisplayPort, USB, Type-C, RS232 and network interfaces, together with Wi-Fi 5/Wi-Fi 6 and Bluetooth 5.2 connectivity. Built-in interactive functions include wireless screen mirroring, annotation, screenshot, interactive whiteboard, OCR, QR-code file transfer and OTA system upgrades.
