Specifications UNV MW3575-U-CA
| Features | Specifications |
|---|---|
Display |
|
| Product Type | Smart Interactive Display |
| Panel Size | 75 inches |
| Backlight | DLED |
| Resolution | 3840 × 2160 (4K UHD) |
| Brightness | 350 cd/m² |
| Contrast Ratio | 1200:1 |
| Response Time | 8 ms |
| Refresh Rate | 60 Hz |
| Viewing Angle | 178° Horizontal / 178° Vertical |
| Color Support | 1.07 billion colors |
| Color Gamut | 72% |
| Haze Value | 25% |
| Pixel Pitch | 0.4296 × 0.4296 mm |
| Display Lifespan | 50,000 hours |
| Surface Hardness | 9H (7 on Mohs Scale) |
| Glass | 4 mm Tempered Anti-Glare Glass |
Touch |
|
| Touch Technology | Infrared Touch |
| Touch Control | Up to 32-Point Touch and 20-Point Writing |
| Touch Precision | ±1 mm |
| Touch Response Time | ≤5 ms |
| Recognizable Object | 5 Points, 3 mm |
| Touch Input | Opaque Objects such as Fingers and Pens |
System |
|
| Processor | Amlogic T982 Quad-Core ARM Cortex-A55 |
| CPU Frequency | 1.9 GHz |
| RAM | 4 GB DDR4 |
| Storage | 32 GB eMMC |
| Operating System | Android 13.0 |
Video Interface |
|
| HDMI Input | 3 × HDMI IN, up to 4K |
| VGA Input | 1 × VGA IN |
| AV Input | 1 × AV IN |
| YPbPr Input | 1 × YPbPr IN |
| DisplayPort Input | 1 × DP IN |
| HDMI Output | 1 × HDMI OUT, up to 4K |
| AV Output | 1 × AV OUT |
Audio |
|
| Audio Input | 1 × MIC IN |
| Audio Output | 1 × Earphone, 1 × Coaxial Audio Output |
| Speaker | 2 × 5W Treble + 2 × 15W Bass |
| Total Speaker Output | 40W |
Network & Wireless |
|
| LAN Interface | 1 × LAN IN, 1 × LAN OUT |
| Wi-Fi | Wi-Fi 5 + Wi-Fi 6, 2.4 GHz / 5 GHz |
| Wi-Fi Coverage | Approx. 30 m² |
| Wi-Fi Transmission Distance | Up to 20 m in Open Space |
| Bluetooth | Bluetooth 5.2 |
| Bluetooth Transmission Distance | Up to 10 m in Open Space |
Camera & Microphone |
|
| Camera | Built-in Camera |
| Camera Resolution | 13 MP for Photos; 13 MP for Video on Windows, 1080P Video on Android |
| Camera Field of View | 118° / 94° / 75° |
| Microphone | 8-Array Microphone |
| Microphone Pickup Distance | Up to 8 m |
Interfaces |
|
| USB 3.0 | 3 × Front USB 3.0 |
| USB 2.0 | 1 × On-Board USB 2.0 |
| USB 3.0 | 1 × On-Board USB 3.0 |
| Touch USB | 2 × Touch USB |
| USB Type-C | 1 × Type-C |
| TF Card | 1 × TF Card Slot |
| RS232 | 1 × RS232 |
Interactive Features |
|
| Screen Mirroring | Wireless Screen Mirroring for Android, iOS and Windows |
| Annotation | On-Screen Annotation Tools |
| Screenshot | Built-in Screenshot Function |
| Whiteboard | Interactive Whiteboard with Split-Screen Writing |
| OCR | Text and Graphic Recognition |
| File Transfer | QR Code File Transfer |
| System Upgrade | OTA Remote Upgrade |
Mounting |
|
| VESA Mount | 600 × 400 mm |
| Wall Mount Screw | 4 × M8 Screw Holes |
General |
|
| Power Supply | AC 100–240V, 50/60Hz |
| Power Consumption | 291.5W, without OPS |
| Standby Power Consumption | <0.5W |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Storage Temperature | -20°C to 60°C |
| Storage Humidity | 0% to 95% RH, non-condensing |
| Product Dimensions | 1720 × 1050 × 90 mm |
| Net Weight | 53.0 kg |
| Gross Weight | 60.5 kg |
| Certifications | Energy Star, CE LVD, CB, ERP, CE EMC, FCC and RCM |
Accessories |
|
| Included Accessories | Power Cable, 2 × Touch Pens, Quick Guide, IR Remote Controller and Wall Mounting Bracket |

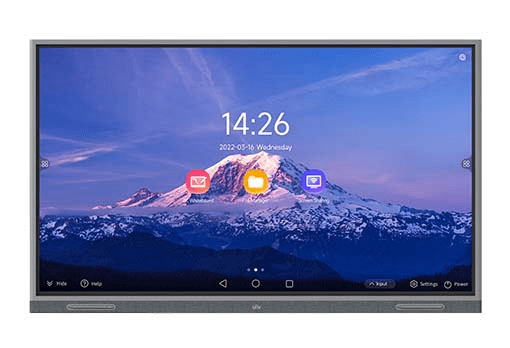

Note: The UNV MW3575-U-CA is a 75-inch 4K UHD Smart Interactive Display designed for education, meetings, presentations and collaborative work. It features a 3840 × 2160 resolution, 60 Hz refresh rate, infrared touch technology supporting up to 32-point touch and 20-point writing, and 4 mm tempered anti-glare glass. The display is equipped with an Amlogic T982 processor, 4 GB DDR4 RAM, 32 GB eMMC storage and Android 13.0. It also integrates a 13 MP camera, 8-array microphone, Wi-Fi 5/Wi-Fi 6 and Bluetooth 5.2 for interactive presentations, video conferencing and collaborative applications. Built-in functions include wireless screen mirroring, annotation, screenshot, split-screen whiteboard, OCR, QR-code file transfer and OTA system upgrades.
