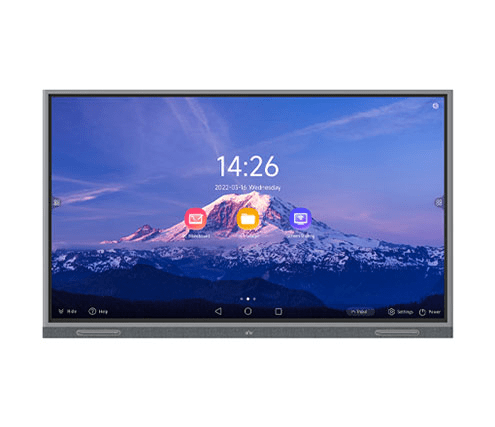

MW3586-U-X
Uniview MW3586-U-X
86-Inch 4K Smart Interactive Display
- 86-inch 4K UHD (3840×2160) anti-glare interactive display
- Supports 32-point touch and 20-point writing with infrared touch technology
- Android 13 operating system with Quad-core CPU, 4GB RAM and 32GB storage
- Built-in dual-band Wi-Fi 5, Bluetooth 5.0 and wireless screen sharing
- 2×15W speakers with USB, HDMI, Type-C, RJ45 and RS232 connectivity
- Ideal for classrooms, meeting rooms, training centers and conference applications
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Specifications Uniview MW3586-U-X
| Features | Description |
|---|---|
| Device Type | 86-Inch Smart Interactive Display |
| Display Size | 86 Inches |
| Resolution | 3840 × 2160 (4K UHD) |
| Brightness | 350 cd/m² |
| Contrast Ratio | 1200:1 |
| Touch Technology | Infrared Touch, 32-Point Touch / 20-Point Writing |
| Operating System | Android 13.0 |
| CPU / Memory | Amlogic T982 Quad-Core A55, 4GB RAM, 32GB eMMC |
| Wireless Connectivity | Built-in Wi-Fi 5 and Bluetooth 5.0 |
| Application | Education, Meeting Room, Training Center and Collaboration |
| Display Panel | 4K UHD D-LED Panel with Anti-Glare Tempered Glass |
|---|---|
| Touch Glass | 4mm Tempered Glass, 7H (Mohs), Anti-Glare |
| Response Time | 8ms (Display), ≤5ms (Touch) |
| Viewing Angle | 178° Horizontal / 178° Vertical |
| Audio | 2 × 15W Built-in Speakers |
| Network | 1 × RJ45 Ethernet (10/100Mbps) |
| SMART FEATURES | |
|---|---|
| Multi-Touch Writing | Supports Up to 32 Simultaneous Touch Points and 20 Writing Points |
| Wireless Screen Sharing | Supports Screen Mirroring from Android, iOS and Windows Devices |
| Built-in Whiteboard | Annotation, OCR Recognition and Screenshot Tools for Interactive Collaboration |
| OTA Upgrade | Supports Online Firmware Upgrade Without Data Backup |
| Wireless Connectivity | Built-in Dual-Band Wi-Fi 5 and Bluetooth 5.0 |
| Easy Collaboration | Ideal for Classrooms, Conference Rooms and Interactive Presentations |
| GENERAL | |
|---|---|
| Dimensions | 1969.8 × 1151 × 115.9mm |
| Weight | 58kg (Net), 79kg (Gross) |
| Power Supply | AC 100–240V, 50/60Hz |
| Power Consumption | 236W |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 10% to 90% RH (Non-Condensing) |
| VESA Mount | 800 × 400mm |
| Warranty | 3 Years |
Note: The Uniview MW3586-U-X is an 86-inch 4K Smart Interactive Display featuring Android 13, an Amlogic T982 processor, 4GB RAM, 32GB storage, infrared multi-touch technology supporting 32 touch points, built-in whiteboard with OCR, wireless screen sharing, Bluetooth 5.0, dual-band Wi-Fi 5, and integrated 2 × 15W speakers. It is designed for classrooms, meeting rooms, and collaborative workspaces.
Important: The Uniview MW3586-U-X features an 86-inch 4K UHD anti-glare display, Android 13 operating system, 32-point infrared touch, wireless screen mirroring, OCR-enabled whiteboard, Bluetooth 5.0, Wi-Fi 5, HDMI, USB, Type-C, RS232 interfaces, and VESA 800 × 400mm mounting support. It is ideal for interactive teaching, business meetings, presentations, and collaborative environments.
