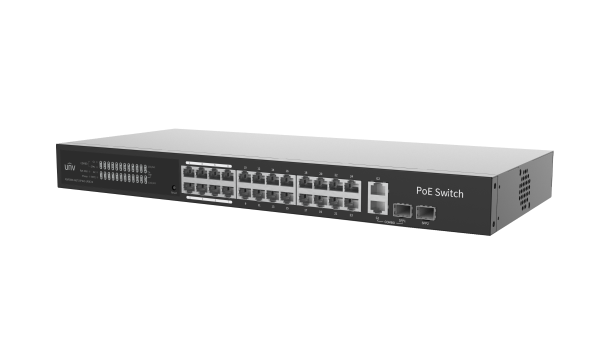

Uniview NSW3000-25GT1GP1GC-LPOE-IN

Uniview NSW3000-25GT1GP1GC-LPOE-IN

Uniview NSW3000-25GT1GP1GC-LPOE-IN

25-Port Gigabit PoE Network Switch

  • 24 × Gigabit PoE ports for powering network devices
  • 1 × Gigabit PoE port for flexible device connection
  • 1 × Gigabit RJ45 uplink port for network connectivity
  • 1 × Gigabit SFP uplink port for fiber connectivity
  • Supports IEEE 802.3af/at PoE standards
  • Suitable for IP cameras, access points and surveillance networks
หมวดหมู่: , , ป้ายกำกับ:

Specifications Uniview NSW3000-25GT1GP1GC-LPOE-IN

Features Description
Product Type Cloud Managed Gigabit Low Power PoE Switch
PoE Ports 24 × 10/100/1000 Mbps PoE RJ45
Uplink Port 1 × 10/100/1000 Mbps RJ45
SFP Port 1 × Gigabit SFP
Combo Port 1 × Gigabit Combo
Switching Capacity 54 Gbps
Forwarding Performance 40.176 Mpps
Packet Buffer 4 Mbit
MAC Address Table 8K
PoE Description
PoE Standard IEEE 802.3af / IEEE 802.3at
PoE Budget Up to 250 W Total
PoE Power per Port Up to 30 W
PoE Mode Mode A (1/2+, 3/6-) / Mode B (4/5+, 7/8-)
Priority Ports Ports 1–8
PoE Transmission Up to 250 m using Standard Network Cable
Extend Mode Up to 250 m Communication Distance at 10 Mbps
Management & Functions Description
Cloud Management APP / Web / Client Management
VLAN Access / Trunk, Up to 32 VLANs
Link Aggregation Supported, 2 Uplink Ports
Port Mirroring N:1 Port Mirroring
Port Isolation Supported on Downlink Ports
Rate Limitation Supported
Broadcast Storm Control Supported
Loop Detection Supported
PoE Management View, Enable/Disable and Remotely Restart PoE Power
Network Topology Automatic Discovery of Connected Video Devices and Topology Generation
General Description
Network Standards IEEE 802.3, 802.3u, 802.3z, 802.3ab, 802.3x, 802.3af, 802.3at, 802.3az
Power Supply AC 100–240 V, 50/60 Hz
Maximum Power Consumption 260 W
Cooling 1 × Cooling Fan
Operating Temperature 0°C to 45°C
Operating Humidity 5%–90%, Non-Condensing
Dimension 440 × 189.8 × 44 mm
Weight 2.22 kg
Compliance NDAA Compliant

Note: The Uniview NSW3000-25GT1GP1GC-LPOE-IN is a Cloud Managed Gigabit Low Power PoE Switch featuring 24 × Gigabit PoE ports, 1 × Gigabit RJ45 uplink, 1 × Gigabit SFP, and 1 × Gigabit Combo port. It supports IEEE 802.3af/at, up to 250 W total PoE power, up to 30 W per port, cloud management, VLAN, link aggregation, port isolation, and up to 250 m transmission in Extend mode.
