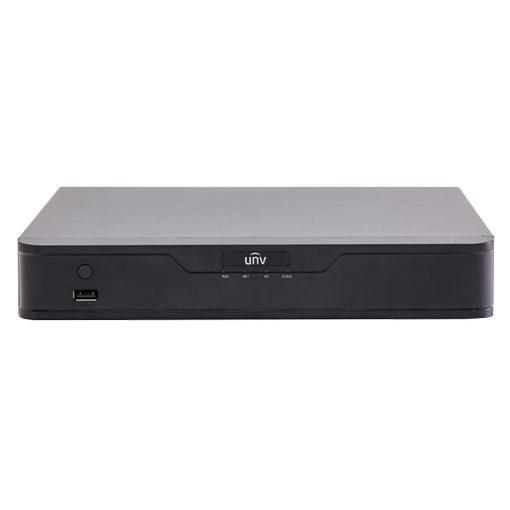

Specifications Uniview NVR301-08S3
| Features | Description |
|---|---|
| Product Type | 8-Channel 1U Network Video Recorder |
| IP Video Input | 8 Channels |
| Video Compression | Ultra 265 / H.265 / H.264 |
| Incoming Bandwidth | 64 Mbps |
| Outgoing Bandwidth | 48 Mbps |
| Remote Users | Up to 128 |
| Recording Resolution | Up to 4K / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1 / 2CIF / CIF |
| Decoding & Display | Description |
|---|---|
| Decoding Capability | 1 × 4K@30, 1 × 5MP@30, 2 × 4MP@30, 4 × 3MP@25, 4 × 1080P@30, 8 × 720P@30 |
| HDMI Output | 1 × HDMI, up to 3840 × 2160 @ 30 Hz |
| VGA Output | 1 × VGA, up to 1920 × 1080 @ 60 Hz |
| Video Output | HDMI and VGA simultaneous output |
| Synchronous Playback | 8 Channels |
| Audio Output | 1 × 3.5 mm |
| Smart Function | Description |
|---|---|
| VCA Detection | Face Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Ultra Motion Detection (UMD) |
| Smart by IPC | 4 Channels |
| VCA Search | Behavior Search |
| Face Snapshot Records | Up to 2 Million Records |
| Alarm | Motion Detection, Tampering, Human Body Detection, Video Loss, Audio Detection |
| Network & Storage | Description |
|---|---|
| Network Interface | 1 × RJ45 10/100 Mbps |
| Network Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP |
| ONVIF | Profile S / Profile G / Profile T |
| SATA | 1 × SATA Interface |
| Maximum HDD Capacity | Up to 6 TB |
| USB | 2 × USB 2.0 |
| General | Description |
|---|---|
| Power Supply | 12 VDC |
| Power Consumption | ≤ 5 W, Without HDD |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | ≤ 90% RH, Non-Condensing |
| Dimension | 260 × 240 × 46 mm |
| Weight | ≤ 0.98 kg, Without HDD |
Note: The Uniview NVR301-08S3 is an 8-channel 1U network video recorder supporting Ultra 265/H.265/H.264, up to 4K recording, 64 Mbps incoming bandwidth, 48 Mbps outgoing bandwidth, 8-channel synchronous playback, 1 SATA HDD up to 6 TB, HDMI/VGA simultaneous output, ONVIF Profile S/G/T, and IPC-based smart detection.
