| Features |
Description |
| Product Type |
8-Channel Hybrid DVR/NVR |
| Analog Video Input |
8 × BNC |
| IP Video Input |
4 Channels, expandable up to 12 IP channels |
| Supported Camera Types |
TVI / AHD / CVI / CVBS / IP |
| Maximum Recording Resolution |
Up to 8MP |
| HDD Interface |
2 × SATA |
| Video Output |
1 × HDMI, 1 × VGA |
| HDMI Output |
Up to 4K |
| VIDEO INPUT |
| Analog Video Input |
8-ch, BNC |
| IP Video Input |
4-ch, up to 12 IP channels |
| IP Camera Resolution |
Up to 4K per channel |
| Supported Analog Camera |
AHD / TVI / CVI / CVBS |
| ANALOG VIDEO |
| AHD |
Up to 8MP@15fps, 5MP@20fps, 4MP@30fps, 3MP@30fps, 1080P@30fps, 720P@60fps |
| TVI |
Up to 8MP@15fps, 5MP@20fps, 4MP@30fps, 3MP@20fps, 1080P@30fps, 720P@60fps |
| CVI |
Up to 8MP@15fps, 5MP@20fps, 4MP@30fps, 3MP@30fps, 1080P@30fps, 720P@60fps |
| CVBS |
Supported |
| VIDEO RECORDING |
| Video Compression |
H.265 / H.264 |
| Maximum Recording Resolution |
Up to 8MP |
| Recording Frame Rate |
Up to 30fps depending on resolution and channel |
| Recording Mode |
Manual / Schedule / Motion Detection / Alarm |
| VIDEO OUTPUT |
| HDMI Output |
1 × HDMI, up to 3840 × 2160 |
| VGA Output |
1 × VGA, up to 1920 × 1080 |
| AUDIO |
| Audio Input |
1 × RCA |
| Audio Output |
1 × RCA |
| STORAGE |
| SATA Interface |
2 × SATA |
| Hard Disk |
Supports up to 2 HDDs |
| Storage Technology |
ANR supported |
| NETWORK |
| Network Interface |
1 × RJ45 Ethernet |
| Ethernet Speed |
10/100/1000Mbps |
| Network Protocols |
TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP, UPnP |
| ONVIF |
Supported |
| INTERFACE |
| USB |
USB ports for mouse and backup |
| Video Input |
8 × BNC |
| Audio Input |
1 × RCA |
| Audio Output |
1 × RCA |
| Video Output |
1 × HDMI, 1 × VGA |
| PHYSICAL |
| Installation |
Desktop / Rack Mount |

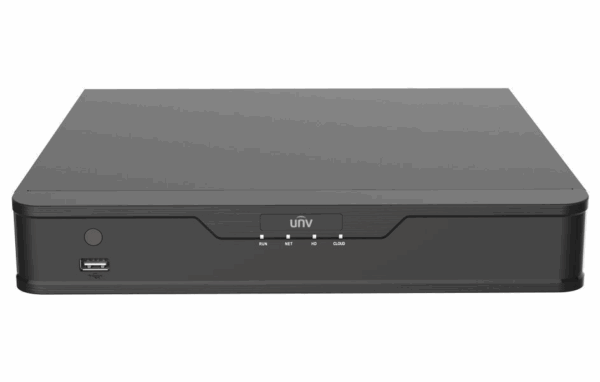

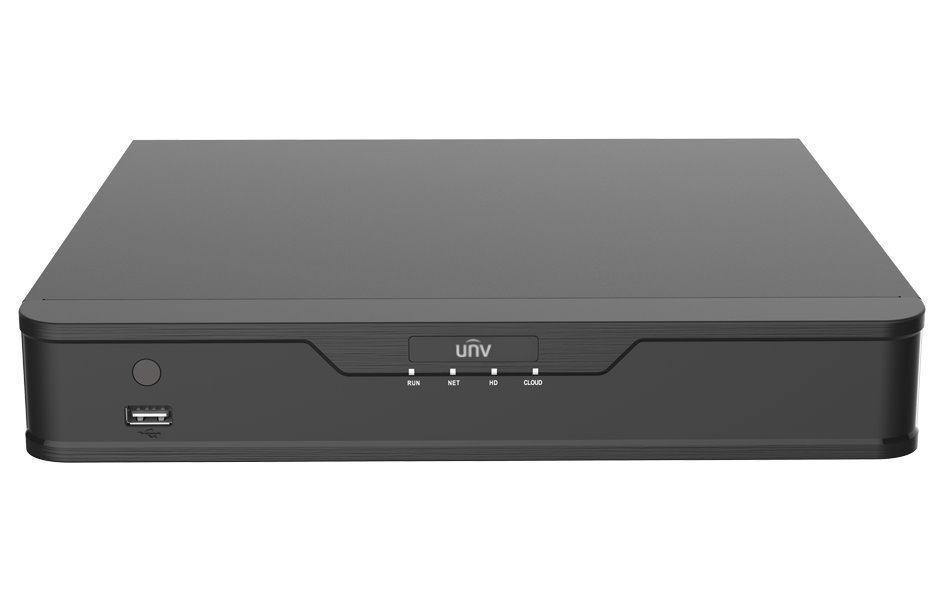

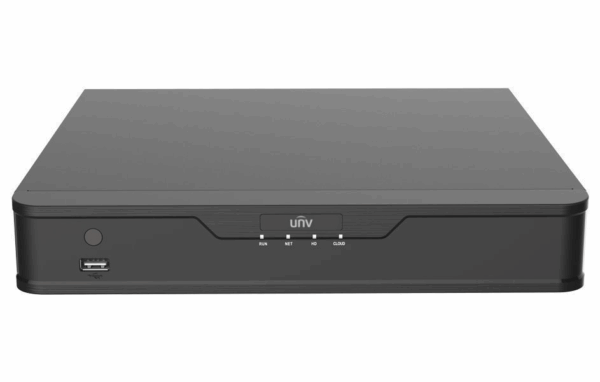

Note: The Uniview NVR302-08Q is an 8-channel hybrid DVR/NVR designed to support TVI, AHD, CVI, CVBS and IP cameras. It provides 8 × BNC analog video inputs and supports 4 IP video channels, expandable to up to 12 IP channels. The recorder supports recording resolutions of up to 8MP, 1 × HDMI output up to 4K, 1 × VGA output up to 1920 × 1080 and 2 × SATA interfaces for hard disk storage.
Important: The NVR302-08Q is a Hybrid DVR/NVR, not a pure IP NVR. It provides 8 × BNC inputs for TVI/AHD/CVI/CVBS cameras and supports 4 IP camera channels, expandable to up to 12 IP channels. It supports recording up to 8MP, 2 × SATA HDDs, 1 × HDMI output up to 4K and 1 × VGA output up to 1920 × 1080.
