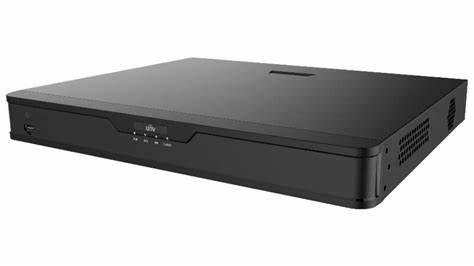

Specifications Uniview NVR302-09E2
| Features | Description |
|---|---|
| Product Type | 9-Channel Network Video Recorder |
| Video Input | 9 IP Channels |
| Video Compression | Ultra 265, H.265, H.264 |
| Recording Resolution | Up to 12MP |
| Decoding | 1×12MP@30, 2×4K@30, 5×4MP@30, 9×1080P@30 |
| Incoming / Outgoing Bandwidth | 320 Mbps / 180 Mbps |
| Video Output | 1× HDMI up to 4K, 1× VGA |
| Storage | 2× SATA, up to 8TB per HDD |
| Network Interface | 2× RJ45 10/100/1000Mbps |
| Audio | 1× RCA Audio Input, 1× RCA Audio Output |
| Alarm | 8× Alarm Input, 2× Alarm Output |
| USB | 1× USB 2.0, 1× USB 3.0 |
| Power Supply | 12VDC/3.3A |
| Dimensions | 380 × 315 × 53 mm |
| Application | Description |
|---|---|
| IP Surveillance | 9-channel IP camera recording and monitoring |
| AI Surveillance | Face Detection, Face Comparison, Intrusion Detection and People Counting |
| Remote Monitoring | Supports P2P, IPv4/IPv6, RTSP and remote access |
| Storage System | 2-SATA HDD storage with ANR support |
| Camera Compatibility | Supports ONVIF Profile S, Profile G, Profile T and RTSP |
Note: Supports 16-channel synchronous playback and HDMI/VGA simultaneous output.
Important: This model has no built-in PoE ports. An external PoE switch is required for PoE cameras.
