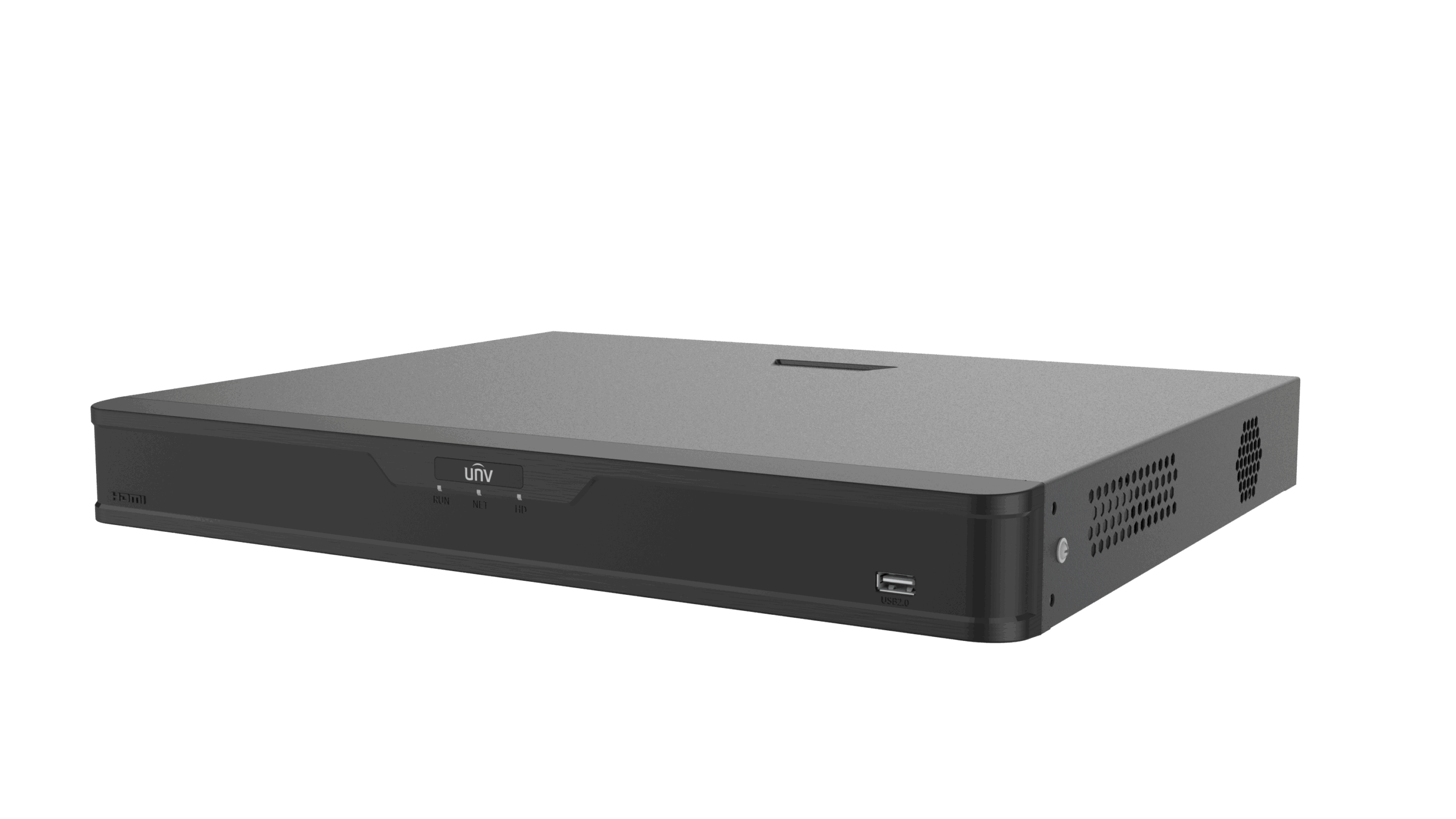

Specifications Uniview NVR302-32B-IQ
| Features | Description |
|---|---|
| Product Type | 32-Channel 1U Network Video Recorder |
| Video Input | 32 IP Channels |
| Video Compression | Ultra 265, H.265, H.264 |
| Recording Resolution | Up to 12MP |
| Decoding | Smart Off: 2×12MP@30, 2×4K@30, 4×4MP@30, 10×1080P@30, 20×720P@30, 32×D1 |
| Incoming / Outgoing Bandwidth | 160 Mbps / 128 Mbps |
| Video Output | 1× HDMI up to 4K, 1× VGA up to 1080P |
| Storage | 2× SATA, up to 10TB per HDD |
| Network Interface | 2× RJ45 10/100/1000Mbps |
| Audio | 1× RCA Audio Input, 1× RCA Audio Output, 1-Channel Two-Way Audio |
| USB | 1× USB 2.0 Front, 1× USB 2.0 Rear, 1× USB 3.0 Rear |
| Power Supply | DC 12V/3A |
| Dimensions | 380 × 315 × 53 mm |
| Application | Description |
|---|---|
| IP Surveillance | 32-channel IP camera recording and monitoring |
| AI Surveillance | Face Detection, Vehicle Detection, SIP, UMD and People Counting |
| Remote Monitoring | Supports P2P, IPv4/IPv6, RTSP and remote access |
| Storage System | 2-SATA HDD storage with ANR support |
| Camera Compatibility | Supports ONVIF Profile S, Profile G, Profile T and RTSP |
Note: Supports 16-channel synchronous local playback and HDMI/VGA simultaneous output.
Important: This model has no built-in PoE ports. An external PoE switch is required for PoE cameras.
