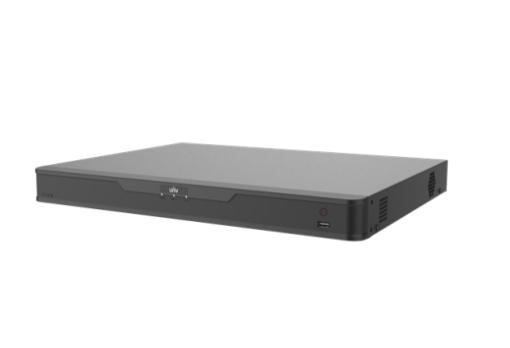

Specifications UNIVIEW NVR304-32B-IQ
| Features | Description |
|---|---|
| Product Type | 32-Channel 1U Network Video Recorder |
| IP Camera Input | 32 Channels |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 128 Mbps |
| Video Compression | Ultra 265, H.265, H.264 |
| Recording Resolution | Up to 12 Megapixels |
| Decoding | Up to 2 × 12MP@30, 2 × 4K@30, 4 × 4MP@30, 10 × 1080P@30 |
| HDMI Output | 1 × HDMI, Up to 4K (3840 × 2160) @ 30 Hz |
| VGA Output | 1 × VGA, Up to 1920 × 1080 @ 60 Hz |
| HDD Interface | 4 × SATA, Up to 10 TB per HDD |
| Network Interface | 2 × RJ45 10/100/1000 Mbps |
| USB | 1 × USB 2.0 Front, 1 × USB 2.0 Rear, 1 × USB 3.0 Rear |
| Power Supply | 12V DC / 5A |
| Dimensions | 440 × 350 × 48 mm |
| Application | Description |
|---|---|
| CCTV System | 32-Channel IP Video Surveillance System |
| Smart Surveillance | Face Detection, Vehicle Detection, Intrusion Detection and People Counting |
| Storage | Up to 4 HDDs for Video Recording |
| Network | ONVIF Profile S/G/T and RTSP Compatible Cameras |
| Backup | ANR Technology for Recording Continuity During Network Disconnection |
Note: NVR304-32B-IQ is a 32-channel Uniview 1U NVR with 4 SATA interfaces and support for up to 12MP recording.
Important: NVR304-32B-IQ is the non-PoE version; IP cameras require an external PoE switch or power source.
