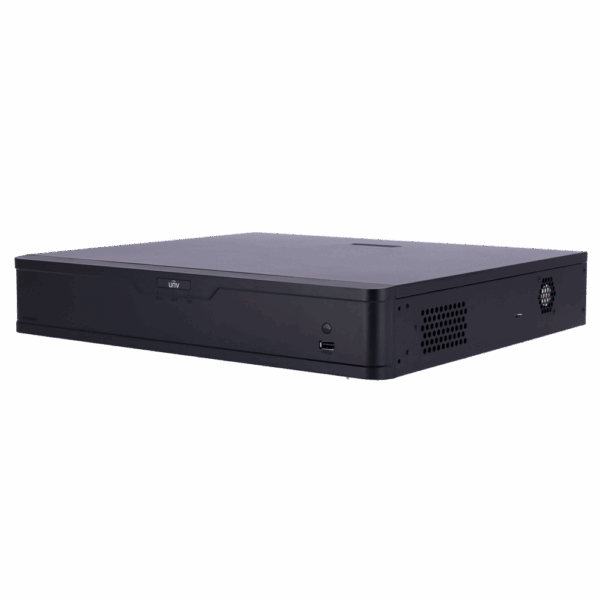

Specifications UNIVIEW NVR304-32B-P16-IQ
| Features | Description |
|---|---|
| Product Type | 32-Channel Network Video Recorder with 16 PoE Ports |
| IP Camera Input | 32 Channels |
| PoE Ports | 16 × RJ45, IEEE 802.3af/at |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 128 Mbps |
| Video Compression | Ultra 265, H.265, H.264 |
| Recording Resolution | Up to 12 Megapixels |
| Decoding | Up to 2 × 12MP@30, 2 × 4K@30, 4 × 4MP@30, 10 × 1080P@30 |
| HDMI Output | 1 × HDMI, Up to 4K (3840 × 2160) @ 30 Hz |
| VGA Output | 1 × VGA, Up to 1920 × 1080 @ 60 Hz |
| HDD Interface | 4 × SATA |
| Network Interface | 1 × RJ45 10/100/1000 Mbps |
| Alarm I/O | 16 Inputs / 4 Outputs |
| USB | 1 × USB 2.0 Front, 1 × USB 3.0 Rear |
| Power Supply | AC 100–240V |
| Dimensions | 400 × 369 × 74 mm |
| Application | Description |
|---|---|
| CCTV System | 32-Channel IP Video Surveillance System |
| PoE Camera | Direct Connection of Up to 16 PoE IP Cameras |
| Smart Surveillance | Face Detection, Vehicle Detection, Intrusion Detection and People Counting |
| Storage | 4 × SATA HDD for Video Recording |
| Network | ONVIF Profile S/G/T and RTSP Compatible Cameras |
Note: NVR304-32B-P16-IQ is a 32-channel Uniview NVR with 16 integrated PoE ports and support for up to 12MP recording.
Important: The 16 PoE ports provide up to 30W per port and 150W total PoE power.
