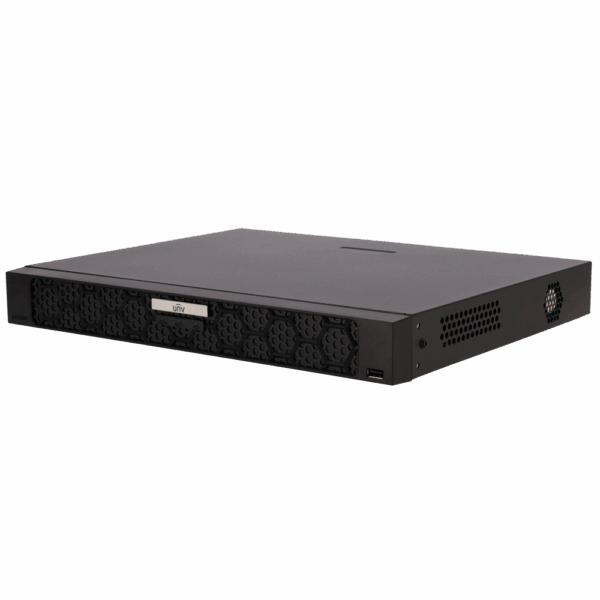

Specifications Uniview NVR502-16B-P16-IQ
| Features | Specifications |
|---|---|
Video & Recording |
|
| Product Type | 16-Channel 16-PoE Network Video Recorder |
| IP Video Input | 16 Channels |
| Video Compression | Ultra 265 / H.265 / H.264 |
| Recording Resolution | 16MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1 / 2CIF / CIF |
| Incoming Bandwidth | 320 Mbps (Smart Off) / 160 Mbps (Smart On) |
| Outgoing Bandwidth | 160 Mbps |
| Synchronous Playback | 16 Channels |
Decoding |
|
| Decoding Capability | Smart Off: 2 × 16MP@30 / 2 × 12MP@30 / 4 × 4K@30 / 8 × 4MP@30 / 10 × 3MP@30 / 16 × 1080P@30 |
| Smart Decoding | Smart On: 2 × 12MP@30 / 2 × 4K@30 / 6 × 4MP@30 / 8 × 3MP@30 / 12 × 1080P@30 / 16 × 720P@30 |
| Audio Compression | G.711A / G.711U |
Smart Functions |
|
| Smart by IPC | Face Detection / Vehicle Detection / Smart Intrusion Prevention / Ultra Motion Detection / Temperature Detection / People Counting / Video Metadata / Traffic Monitoring |
| Smart by NVR | Face Detection / Smart Intrusion Prevention / Ultra Motion Detection |
| VCA Search | Motor Vehicle / Non-Motor Vehicle / Human Body / General Search |
| Face Detection by NVR | Supported |
| ANR | Supported |
Alarm |
|
| Alarm Input | 8 Channels |
| Alarm Output | 2 Channels |
| Alarm Functions | Motion Detection / Video Loss / Tampering / Defocus / Scene Change / Audio Detection / Object Detection |
Storage |
|
| HDD Interface | 2 × SATA |
| HDD Capacity | Up to 16 TB per HDD |
| Disk Group | Supported |
| Redundant Storage | Supported |
| RAID | RAID 1 |
Network |
|
| Network Interface | 1 × RJ-45, 10/100/1000 Mbps |
| Network Protocols | TCP/IP / P2P / NTP / DHCP / PPPoE / HTTP / HTTPS / DNS / DDNS / SNMP / SMTP / NFS / RTSP / IPv6 |
| Remote Users | 128 |
| Interoperability | ONVIF Profile S / Profile G / Profile T / RTSP |
PoE |
|
| PoE Ports | 16 × RJ-45, 10/100 Mbps |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| PoE Power per Port | Up to 30W |
| Total PoE Power | Up to 240W |
Video & Audio Output |
|
| HDMI Output | 1 × HDMI, up to 4K (3840 × 2160) @ 30Hz |
| VGA Output | 1 × VGA, up to 1920 × 1080 @ 60Hz |
| Audio Input | 1 × RCA |
| Audio Output | 1 × RCA |
| Two-Way Audio | 1 Channel via RCA Audio Input / Output |
Interfaces |
|
| USB | 1 × USB 2.0 Front / 1 × USB 3.0 Rear |
| RS-485 | 1 × RS-485 |
| Power Switch | Supported |
General |
|
| Power Supply | AC 100–240V |
| Power Consumption | ≤12W, without HDD |
| Operating Temperature | -10°C to 50°C |
| Operating Humidity | ≤90% RH, non-condensing |
Note: The Uniview NVR502-16B-P16-IQ is a 16-channel PoE NVR supporting up to 16MP recording, 320Mbps incoming bandwidth with Smart Off, 2 SATA HDDs up to 16TB each, 4K HDMI output and 16 independent PoE ports. Each PoE port supports up to 30W, with a total PoE budget of 240W. :contentReference[oaicite:0]{index=0}
