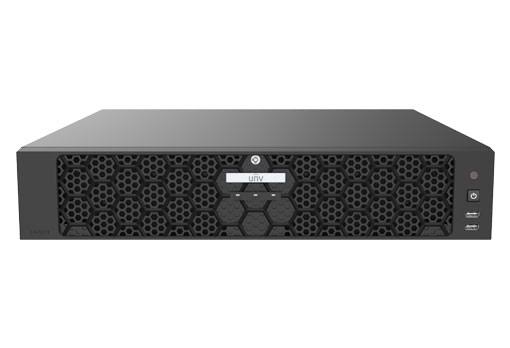

Specifications Uniview NVR508-64E-R
| Features | Specifications |
|---|---|
Video & Recording |
|
| Device Type | 64-Channel 2U Network Video Recorder |
| IP Video Input | 64 Channels |
| Video Compression | Ultra 265 / H.265 / H.264 |
| Incoming Bandwidth | 384 Mbps |
| Outgoing Bandwidth | 384 Mbps |
| Maximum Recording Resolution | Up to 32 Megapixels |
| Recording Resolution | 32MP / 16MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1 / 2CIF / CIF |
| Local Synchronous Playback | Up to 16 Channels |
| ANR | Supported |
Decoding |
|
| Decoding Capability | 2 × 32MP@30, 4 × 16MP@30, 5 × 12MP@30, 8 × 4K@30, 16 × 4MP@30, 32 × 1080P@30, 54 × 960P@25, 64 × 720P@30 |
| Decoding Format | Ultra 265 / H.265 / H.264 |
| Remote Users | Up to 128 Users |
Video & Audio Output |
|
| HDMI Output | 2 × HDMI, up to 4K (3840 × 2160) @ 60 Hz |
| VGA Output | 2 × VGA, up to 1920 × 1080 @ 60 Hz |
| Audio Input | 1 × RCA |
| Audio Output | 2 × RCA |
| Two-Way Audio | 1 Channel via RCA |
Storage |
|
| HDD Interface | 8 × SATA |
| Maximum HDD Capacity | Up to 16 TB per HDD |
| RAID | RAID 0 / 1 / 5 / 6 / 10 |
| HDD Hot Swap | Supported |
| Disk Group | Supported |
| N+1 Hot Spare | Supported |
Smart Functions |
|
| VCA Detection | Face Detection, Vehicle Detection, SIP, Ultra Motion Detection (UMD), Temperature Detection, People Counting, Video Metadata and Traffic Monitoring |
| VCA Search | Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report and Heat Map |
| Smart by IPC | Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata and Traffic Monitoring |
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input and Audio Detection |
Network |
|
| Network Interface | 2 × RJ45 10/100/1000 Mbps Ethernet |
| Network Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1X and IPv6 |
| Interoperability | ONVIF Profile S / Profile G / Profile T and RTSP |
Interface |
|
| USB | 2 × USB 2.0 Front Panel, 2 × USB 3.0 Rear Panel |
| RS485 | 1 × RS485 |
| RS232 | 1 × RS232 |
| Alarm Input | 16 Channels |
| Alarm Output | 10 Channels |
| eSATA | 1 × eSATA |
| Power Output | 12 VDC |
Power & Environment |
|
| Power Supply | AC 100–240 V |
| Power Consumption | ≤ 35 W without HDD |
| Redundant Power Supply | Optional |
| Operating Temperature | -10°C to 55°C |
| Operating Humidity | ≤ 90% RH, non-condensing |
Physical |
|
| Form Factor | 2U Rackmount |
| Dimensions | 442 × 448 × 93 mm |
| Weight | ≤ 6 kg without HDD |
Certification |
|
| Certifications | CE, FCC, UL, RoHS, WEEE |
Note: The NVR508-64E-R supports 64 IP camera channels, up to 32MP recording resolution, 8 SATA HDDs, RAID 0/1/5/6/10, HDD hot swap and N+1 hot spare. Specifications may vary depending on hardware version and firmware.
