| Features |
Specifications |
| Product Type |
32-Channel 3U Network Video Recorder |
| IP Video Input |
32 Channels |
| Video Compression |
Ultra 265, H.265, H.264 |
| Maximum Recording Resolution |
Up to 12 Megapixels |
| Incoming Bandwidth |
320 Mbps |
| Outgoing Bandwidth |
320 Mbps |
| Remote Users |
Up to 128 Users |
| ONVIF |
Supports ONVIF Profile S, G, C, Q, A and T |
| ANR |
Supported |
Recording & Decoding
| Features |
Specifications |
| Decoding Capability |
4 × 12MP@20, 4 × 4K@30, 16 × 1080P@30, 32 × 720P@30 |
| Recording Resolution |
12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1 / 2CIF / CIF |
| Local Synchronous Playback |
16 Channels |
| Snapshot |
32 Channels, up to 4K resolution |
| Audio Compression |
G.711A, G.711U |
| Two-Way Audio |
1 Channel via BNC |
| ANR |
Supported for improved recording reliability when the network is disconnected |
Video & Audio Output
| Features |
Specifications |
| HDMI Output |
2 × HDMI; up to 4K (3840 × 2160) @ 30 Hz |
| VGA Output |
1 × VGA; up to 1920 × 1080 @ 60 Hz |
| Independent Display |
HDMI1, HDMI2 and VGA independent outputs |
| Live View Display |
1 / 4 / 6 / 8 / 9 / 16 / 25 / 32 screens |
| Corridor Mode |
3 / 4 / 5 / 7 / 9 / 10 / 12 / 16 / 32 Screen Modes |
| Audio Input |
1 × BNC |
| Audio Output |
1 × BNC |
Storage & RAID
| Features |
Specifications |
| SATA Interfaces |
16 × SATA Interfaces |
| Maximum HDD Capacity |
Up to 16 TB per HDD |
| Disk Array |
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50 and RAID 60 |
| Hot Swap |
Supported |
| N+1 Hot Spare |
Supported |
| eSATA |
1 × eSATA |
Smart & AI Features
| Features |
Specifications |
| Face Detection |
Supported via IPC |
| Vehicle Detection |
Supported via IPC |
| Smart Intrusion Prevention |
Intrusion Detection, Cross Line Detection, Enter Area and Leave Area |
| Ultra Motion Detection |
Supported via IPC |
| Temperature Detection |
Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection |
| People Counting |
People Flow Counting and Crowd Density Monitoring |
| Video Metadata |
Supported |
| Traffic Monitoring |
Supported |
| VCA Search |
Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search and People Counting Report |
Network & Interface
| Features |
Specifications |
| Network Interface |
2 × RJ45 10/100/1000 Mbps Self-Adaptive Ethernet Ports |
| USB |
4 × USB 3.0, Rear Panel |
| RS485 |
1 × RS485 |
| RS232 |
1 × RS232 |
| Alarm Input |
24 Channels |
| Alarm Output |
8 Channels |
| Power Output |
12 V DC |
| Network Protocols |
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1X, IPv4 and IPv6 |
Alarm & Event
| Features |
Specifications |
| Video Events |
Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection and Video Loss |
| Alarm Events |
Alarm Input and Audio Detection |
| System Alerts |
IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Low Disk Space, Disk Full, Recording/Snapshot Abnormal, High CPU Temperature, High Motherboard Temperature, Array Damaged and Array Degraded |
Hardware & General
| Features |
Specifications |
| Power Supply |
AC 100–240 V |
| Power Consumption |
≤ 50 W without HDD |
| Operating Temperature |
-10°C to +55°C |
| Operating Humidity |
≤ 90% RH, Non-Condensing |
| Dimensions |
482 × 478 × 131 mm |
| Weight |
≤ 10 kg without HDD |
| Form Factor |
3U Rackmount |
| Certification |
CE, FCC, UL, RoHS, WEEE |

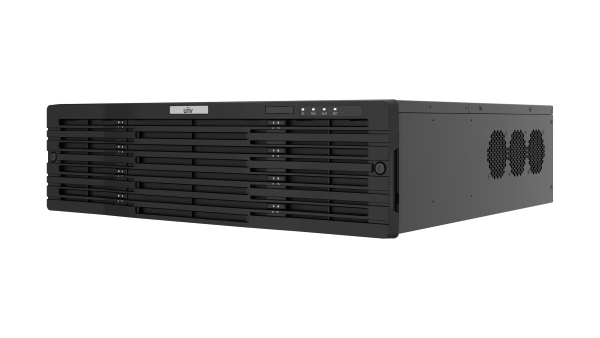

Note: Uniview NVR516-32S is a 32-channel 3U network video recorder supporting up to 12MP recording, 16 SATA HDDs, RAID 0/1/5/6/10/50/60, hot-swappable storage and N+1 hot spare.
Important: HDD capacity and supported functions may vary according to hardware revision, firmware and operating conditions. Please verify the latest manufacturer specifications before installation.
