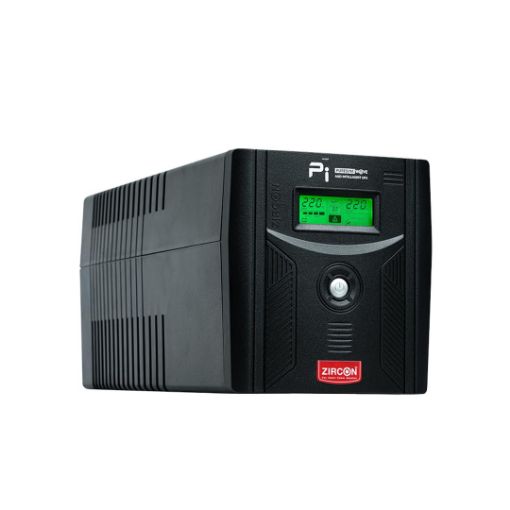

Specifications ZIRCON Pi (Pure Sine Wave) 1000VA/700W
| Features | Specifications |
|---|---|
| Product Type | Line Interactive UPS with Stabilizer |
| Model | Pi 1000VA/700W |
| Brand | ZIRCON |
| Rated Capacity | 1000VA / 700W |
| System Design | Line Interactive UPS with Stabilizer, Microprocessor Control |
| AVR Stabilizer | Automatic Voltage Regulation with Buck & Boost |
| Input Voltage | 220VAC ±25% |
| Input Frequency | 50/60Hz ±10%, Auto Sensing |
| Input Connection | AC 6-Pin Plug |
| Power Cord Length | 1.2 Meters |
| Output Voltage | 220VAC ±10% (AVR Mode), ±5% (Battery Mode) |
| Output Frequency | 50Hz ±0.1% |
| Output Waveform | Pure Sine Wave |
| Transfer Time | Typical 2 ms |
| Surge Energy Dissipation | 320 Joules (6500A) |
| Noise Filter | EMI Suppression |
| Overload & Short Circuit Protection | Reset Fuse Protection |
| Battery Type | Maintenance-Free Sealed Lead-Acid Battery |
| Battery Configuration | 12V 7.8Ah × 2 |
| Recharge Time | 4–6 Hours to 90% Capacity After Full Discharge |
| Backup Time | Approximately 15–60 Minutes, Depending on Load |
| Battery Charging | Automatic Charging System |
| DC Start | Supported |
| Output Connections | 8 × Universal AC Outlets |
| Communication Interface | USB Port |
| Software Monitoring | Supported |
| Automatic Shutdown | Supported Through Monitoring Software |
| Display | LCD Digital Display |
| Display Information | AC Mode, Battery Mode, Input Voltage, Output Voltage, Battery Level, Charging Battery, Load Level, Low Battery, Overload, Fault and Battery Replace |
| Operating Temperature | 0°C to 40°C |
| Audible Noise | <45 dB at 1 Meter |
| Operating Humidity | 90% RH, Non-condensing |
| Dimensions (W × D × H) | 338 × 149.5 × 162 mm |
| Weight | 7.8 kg |
| Safety Standards | IEC/EN62040-1, IEC/EN60950-1 |
| Electromagnetic Compatibility | IEC/EN62040-2 and IEC61000 Series |
| Certifications | TISI 1291:2553, TISI 1291:2555, ISO 9001, ISO 14001, CE, FCC and RoHS |
| Warranty | 2 Years |
Important: The ZIRCON Pi 1000VA/700W is a Line Interactive UPS with Stabilizer and Pure Sine Wave output. It features AVR Buck & Boost, LCD digital display, eight universal output outlets, USB monitoring and automatic charging.
The UPS uses two 12V 7.8Ah sealed lead-acid batteries and provides approximately 15–60 minutes of backup time, depending on the connected load. It is suitable for computers, network equipment, servers and other devices requiring pure sine wave power.
