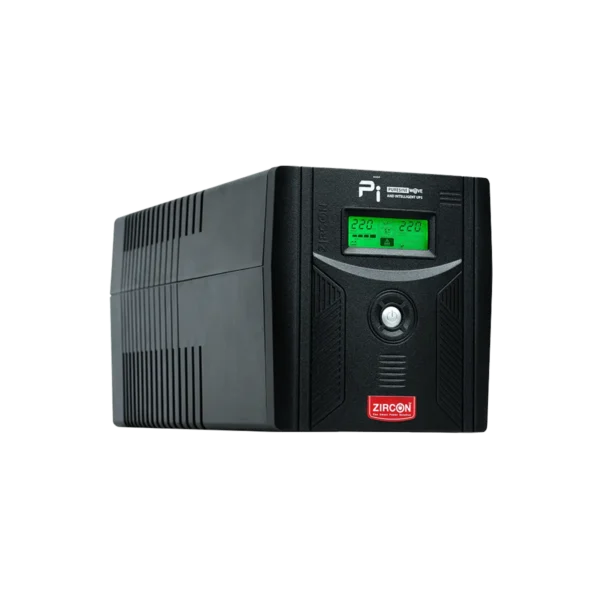

Specifications ZIRCON Pi (Pure Sine Wave) 1500VA/1050W
| Features | Specifications |
|---|---|
| Product Type | Line Interactive UPS with Stabilizer |
| Model | Pi 1500VA/1050W |
| Brand | ZIRCON |
| Rated Capacity | 1500VA / 1050W |
| System Design | Line Interactive UPS with Stabilizer, Microprocessor Control |
| AVR Stabilizer | Automatic Voltage Regulation with Buck & Boost |
| Input Voltage | 220VAC ±25% |
| Input Frequency | 50/60Hz ±10%, Auto Sensing |
| Input Connection | AC 6-Pin Plug |
| Power Cord Length | 1.2 Meters |
| Output Voltage | 220VAC ±10% (AVR Mode), ±5% (Battery Mode) |
| Output Frequency | 50Hz ±0.1% |
| Output Waveform | Pure Sine Wave |
| Power Factor | 0.7 |
| Transfer Time | Typical 2 ms |
| Surge Energy Dissipation | 320 Joules (6500A) |
| Noise Filter | EMI Suppression |
| Overload & Short Circuit Protection | Reset Fuse Protection |
| Battery Type | Maintenance-Free Sealed Lead-Acid Battery |
| Battery Configuration | 12V 9.0Ah × 2 |
| Recharge Time | 4–6 Hours to 90% Capacity After Full Discharge |
| Backup Time | Approximately 15–30 Minutes, Depending on Load |
| Battery Charging | Automatic Constant Voltage Charging |
| DC Start | Supported |
| Deep Discharge Protection | Supported |
| Replace Battery Alert | Supported |
| Output Connections | 8 × Universal AC Outlets |
| Network Protection | RJ45 Communication Port for Network Surge Protection |
| Communication Interface | USB Port |
| Software Monitoring | Supported |
| Automatic Shutdown | Supported Through Monitoring Software |
| Display | LCD Digital Display |
| Display Information | AC Mode, Battery Mode, Input Voltage, Output Voltage, Battery Level, Charging Battery, Load Level, Low Battery, Overload, Fault and Battery Replace |
| Operating Temperature | 0°C to 40°C |
| Audible Noise | <45 dB at 1 Meter |
| Operating Humidity | 90% RH, Non-condensing |
| Dimensions (W × D × H) | 380 × 158 × 198 mm |
| Weight | 11.1 kg |
| Safety Standards | IEC/EN62040-1, IEC/EN60950-1 |
| Electromagnetic Compatibility | IEC/EN62040-2 and IEC61000 Series |
| Certifications | TISI 1291:2553, TISI 1291:2555, ISO 9001:2015, ISO 14001, CE, FCC and RoHS |
| Warranty | 2 Years |
Important: The ZIRCON Pi 1500VA/1050W is a Line Interactive UPS with Stabilizer and Pure Sine Wave output. It features AVR Buck & Boost, microprocessor control, LCD digital display, eight universal output outlets and automatic charging.
The UPS uses two 12V 9.0Ah sealed lead-acid batteries and provides approximately 15–30 minutes of backup time, depending on the connected load. It also supports USB software monitoring, RJ45 network surge protection, overload protection and short circuit protection.
