PKC2640@Z80-IR-P

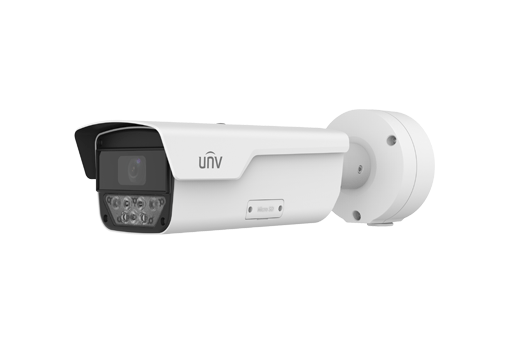

Uniview PKC2640@Z80-IR-P

4MP LPR Bullet Network Camera

  • 4MP resolution with 2688 × 1520 imaging
  • 8–32mm motorized zoom lens for license plate capture
  • Supports vehicle and license plate recognition up to 80km/h
  • IR illumination up to 50m with 120dB WDR
  • Supports allowlist and blocklist with up to 20,000 entries each
  • PoE 802.3at with IP67 and IK10 protection
หมวดหมู่: , ป้ายกำกับ: , ,

Specifications Uniview PKC2640@Z80-IR-P

Features Specifications

Camera

Product Type 4MP License Plate Recognition Bullet IP Camera
Image Sensor 1/1.8″ 4MP CMOS
Maximum Resolution 2688 × 1520
Frame Rate Up to 30fps
Minimum Illumination 0.002 Lux (F1.7)
Shutter Auto / Manual, 1/30s to 1/100000s
WDR 120dB

Lens

Lens Type 8–32mm Motorized Zoom Lens
Horizontal Field of View 42.4° to 15.9°
Vertical Field of View 23.9° to 9.8°
Diagonal Field of View 52.5° to 17.8°

Video

Video Compression H.264 and H.265
Main Stream 2688 × 1520, 1080P, 720P and D1
Sub Stream 720P, D1, 2CIF and CIF
Third Stream D1, 2CIF and CIF
ROI Up to 8 Regions
Video OSD Up to 8 Overlay Areas
Image OSD Up to 8 Overlay Areas, including License Plate Number, Device ID, Camera ID and Allowlist Information

LPR & Smart Features

License Plate Recognition Automatic Recognition of Vehicle License Plates with Numbers and Letters
Application Speed Suitable for Regular Roads with Vehicle Speeds up to 80km/h
Vehicle Detection Video-Based Vehicle Detection
Allowlist / Blocklist Up to 20,000 Entries per List
List Management Import, Export, Add and Delete Vehicle Entries
Barrier Control Configurable Barrier Opening for Recognized Vehicles, Allowlist Vehicles or Vehicles Not on the Blocklist

Infrared

IR Illumination 4 Built-in IR LEDs
IR Range Up to 50m
IR Control Automatic On / Off Control

Storage

Memory Card 1 × MicroSD Card Slot
Maximum Capacity Up to 256GB
ANR Supported

Interfaces

Network Interface 1 × 10/100Mbps RJ45
Serial Interface 1 × RS485
Alarm Output 1 × Relay Output, AC 125V/0.3A or DC 30V/1A
Alarm Input 2 × Inputs, Supporting Level and Switch Signals up to DC 5V
Audio Interface 1 × Audio Input and 1 × Audio Output
Video Output 1 × BNC, PAL / NTSC
Reset Supported

Network

Network Protocols IPv4, IPv6, TCP, UDP, DHCP, PPPoE, RTSP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, 802.1X, SNMP, QoS, SSL/TLS and SSH
Compatibility ONVIF Profile S, Profile G and Profile T, SDK and API

Power & Protection

Power Supply DC 12V +25% / -10% or PoE IEEE 802.3at Class 4
Maximum Power Consumption 20W
Protection Rating IP67
Vandal Resistance IK10
Mounting 3-Axis Mounting Bracket with Integrated Junction Box

General

Material Cast Aluminum
Dimensions 406 × 126 × 130mm
Weight Approx. 2.1kg
Operating Temperature -40°C to 60°C
Operating Humidity ≤90% RH

Note: The Uniview PKC2640@Z80-IR-P is a 4MP License Plate Recognition (LPR) bullet IP camera designed for vehicle identification and access control applications. It features a 1/1.8″ 4MP CMOS sensor, 8–32mm motorized zoom lens, 120dB WDR and built-in 50m IR illumination. The camera supports automatic license plate recognition, allowlist and blocklist management with up to 20,000 entries per list, and configurable barrier control. It also supports MicroSD storage up to 256GB, ANR, RS485, alarm I/O, audio I/O, PoE 802.3at, IP67 and IK10 protection.

Datasheet
