| Features |
Description |
| Product Type |
300W AC Redundant Power Supply Module |
| Application |
NVR / VMS Unicorn |
| Redundant Backup |
1+1 Redundant Backup |
| Hot Plug |
Supported |
| Load Sharing |
Supported |
| Maximum Output Power |
312W |
| AC INPUT |
| Input Voltage |
90~264V AC |
| Input Frequency |
47~63Hz |
| Power Factor |
≥0.95 |
| Input Current |
≤4A @ 100VAC |
| Input Protection |
Input Undervoltage Protection, Input Overvoltage Protection |
| DC OUTPUT |
| Output Voltage / Current |
+12VDC / 25A |
| Standby Output |
+12V Standby / 0.7A |
| Maximum Output Power |
312W |
| Output Efficiency |
≥83% @ 220V AC / 25A |
| Line Regulation |
±5% |
| Load Regulation |
±3% |
| Regulated Voltage Accuracy |
±5% |
| Dynamic Response Overshoot |
±5% |
| Current Sharing Rate |
±5% |
| PROTECTION |
| Short Circuit Protection |
Supported |
| Overload Protection |
Supported |
| Overvoltage Protection |
Supported |
| Hot Plug Protection |
Supported |
| Over Temperature Protection |
Supported |
| REDUNDANCY |
| Redundant Backup |
1+1 Redundant Backup |
| Hot Plug |
Supported |
| Load Flow Sharing |
Supported |
| INDICATOR & COOLING |
| Indicator Light |
Normal: Green On / Abnormal: Yellow On |
| Cooling |
Ventilating Fan Design |
| Heat Dissipation |
Heat Emission at Rear |
| PHYSICAL |
| Dimensions (D × H × W) |
234.9 × 40.13 × 101.6mm |
| ENVIRONMENT |
| Operating Temperature |
0°C to 55°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
10%~90% RH |
| CERTIFICATIONS |
| EMC Standards |
EN55022, EN55024 |
| NEBS Standards |
GR-63-CORE ISSUE 2 |
| Approved Standards |
CB, FCC, UL |

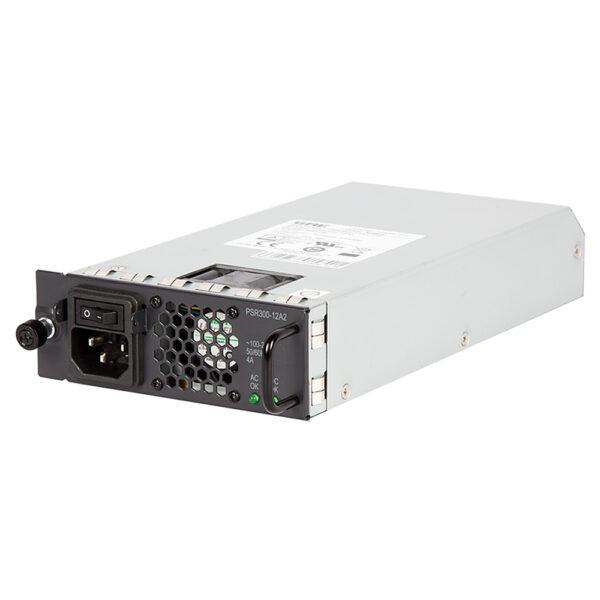

Note: The Uniview PWR-300A-IN is a 300W AC Redundant Power Supply Module designed for NVR systems with high storage requirements. It accepts 90~264V AC input and provides +12VDC/25A output with a maximum output power of 312W. It supports 1+1 redundant backup, hot plug and load sharing for improved system reliability.
Important: The PWR-300A-IN is a Redundant Power Supply Module, not a standalone NVR. It supports 1+1 redundant backup, hot plug and load sharing and is designed for compatible Uniview NVR systems such as the NVR516 series and other systems using the Unicorn platform. It provides +12VDC / 25A output with a maximum power of 312W and includes short-circuit, overload, overvoltage and over-temperature protection.
