| Display |
Description |
| Product Type |
55-inch LCD Video Wall / Splicing Display Unit |
| Panel Size |
55 inches |
| Backlight |
LED (Direct Type) |
| Physical Seam |
3.5 mm |
| Resolution |
1920 × 1080 (Full HD) |
| Color Support |
16.7 Million Colors |
| Brightness |
500 cd/m² |
| Contrast Ratio |
4000:1 |
| Response Time |
8 ms |
| Viewing Angle |
178° Horizontal / 178° Vertical |
| Interface |
Description |
| Video Input |
1 × VGA, 1 × DVI, 2 × HDMI |
| Video Loop Output |
1 × HDMI |
| USB |
1 × USB |
| Control Interface |
1 × RS-232 IN, 1 × RS-232 OUT, 1 × IR |
| Video Wall Features |
Description |
| Built-in Image Splicing |
Supported |
| Splicing Compensation |
Supported |
| White Balance Adjustment |
Supported |
| Image Flip |
Supported |
| Burn-in Prevention |
Supported |
| Remote Control |
Supported |
| RS-232 Control |
Supported |
| 24/7 Operation |
Supported |
| General |
Description |
| Power Supply |
100–240 VAC, 50/60 Hz |
| Power Consumption |
210 W |
| Dimension (W × H × D) |
1213.50 × 684.30 × 125.19 mm |
| Weight |
24.5 kg |
| Operating Temperature |
0°C to 40°C |
| Operating Humidity |
20%–90%, Non-Condensing |

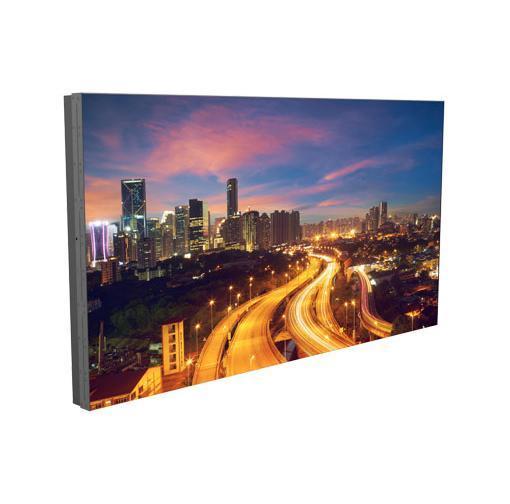

Note: The Uniview MW-A55-B1 is a 55-inch Full HD LCD video wall display with a 3.5 mm physical seam, 500 cd/m² brightness, 4000:1 contrast ratio, 178° viewing angle, built-in image splicing, HDMI loop output, RS-232 control, and 24/7 continuous operation support. It is designed for control rooms, surveillance centers, and multi-screen video wall applications.
