| Features |
Specifications |
| Product Type |
Pan & Tilt Smart Home Camera |
| Image Sensor |
1/3″ Progressive Scan CMOS |
| Maximum Resolution |
1920 × 1080 (2MP) |
| Lens |
4mm |
| Lens Mount |
M12 |
| Viewing Angle |
85° Diagonal, 75° Horizontal, 45° Vertical |
| Shutter Speed |
Self-Adaptive Shutter |
Image & Video
| Features |
Specifications |
| Video Resolution |
1080p, 1920 × 1080 |
| Frame Rate |
Up to 15 fps, self-adaptive during network transmission |
| Video Compression |
H.264 |
| Video Bit Rate |
Adaptive Bit Rate |
| Day & Night |
IR-Cut Filter with Auto Switching |
| Night Vision |
IR Night Vision up to 10m |
| DNR |
3D DNR |
| WDR |
Digital WDR |
Pan & Tilt
| Features |
Specifications |
| Camera Type |
Pan & Tilt |
| Remote Control |
Supported via EZVIZ App |
| Live View Zoom |
Up to 8× |
| Detection Zone |
Supported |
Storage
| Features |
Specifications |
| Local Storage |
MicroSD Card up to 256GB |
| Cloud Storage |
EZVIZ CloudPlay, subscription required |
Network
| Features |
Specifications |
| Wi-Fi Standard |
IEEE 802.11 b/g/n |
| Wi-Fi Frequency |
2.4GHz (2.4–2.4835GHz) |
| Channel Bandwidth |
20MHz |
| Transmission Rate |
802.11b: 11Mbps, 802.11g: 54Mbps, 802.11n: 72Mbps |
| Wi-Fi Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Wi-Fi Pairing |
AP Pairing |
| Wired Network |
1 × RJ45 10/100M Adaptive Ethernet Port |
| Protocol |
EZVIZ Cloud Proprietary Protocol |
Power & General
| Features |
Specifications |
| Power Supply |
DC 5V / 1A |
| Power Consumption |
Max. 5W |
| Dimensions |
88 × 88.2 × 119mm |
| Net Weight |
218g |
| Operating Temperature |
-10°C to +45°C |
| Operating Humidity |
95% or less, non-condensing |
| Certifications |
CE / UL / FCC / WEEE / REACH / RoHS / UKCA |

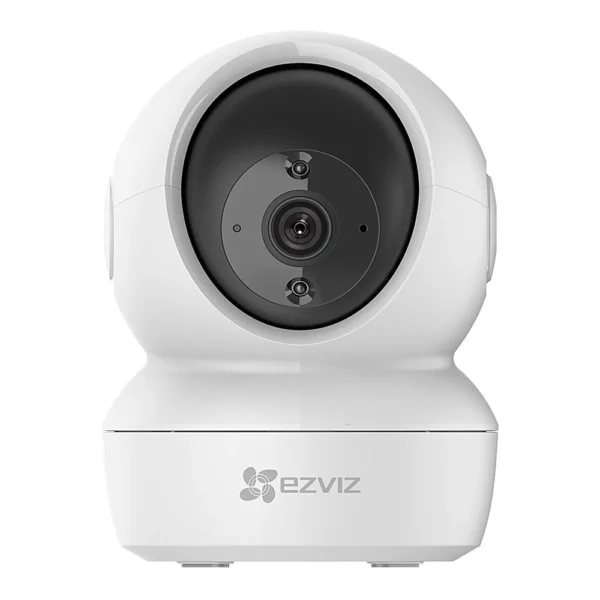

Note: The EZVIZ CS-H6C (R101-1G2WF) is a 2MP Pan & Tilt Smart Home Camera with 4mm lens, IR night vision up to 10m, 2.4GHz Wi-Fi, RJ45 Ethernet and microSD storage up to 256GB.
Important: Specifications are based on the official EZVIZ CS-H6c (R101-1G2WF) product page and datasheet.
