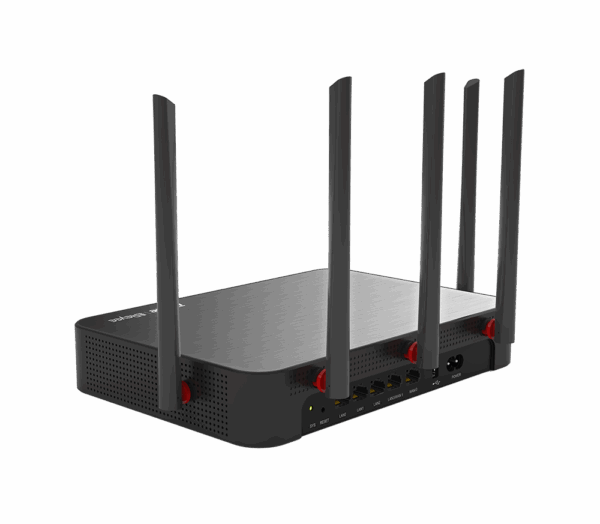

Specifications Ruijie Reyee RG-EG105GW(T)
| Features | Specifications |
|---|---|
Wireless |
|
| Wireless Standard | Wi-Fi 5 (IEEE 802.11ac), backward compatible with IEEE 802.11a/b/g/n |
| Wireless Bands | Dual-Band 2.4 GHz and 5 GHz |
| Wireless Speed | 2.4 GHz: 400 Mbps; 5 GHz: 866 Mbps; Total: 1266 Mbps |
| MIMO | 2 × 2 MIMO on 2.4 GHz and 5 GHz |
| Antennas | 2 × Built-in omnidirectional dual-band antennas |
| Coverage Area | Up to 115 m² under ideal conditions |
Network Interface |
|
| Ethernet Ports | 5 × 10/100/1000BASE-T Gigabit Ethernet ports |
| WAN Ports | 1 × Fixed WAN port + up to 3 configurable WAN/LAN ports |
| LAN Ports | 1 × Fixed LAN port + configurable WAN/LAN ports |
| Maximum WAN Ports | Up to 4 WAN ports |
| USB Port | 1 × USB 2.0 |
Network Performance |
|
| Throughput | Up to 700 Mbps |
| Concurrent Sessions | Up to 12,000 sessions |
| Recommended Concurrent Clients | Up to 150 clients |
| WAN Load Balancing | Supported with up to 4 WAN ports |
| WAN Failover | Supported |
VPN and Security |
|
| VPN | IPSec, OpenVPN, L2TP, PPTP and WireGuard |
| VPN Tunnels | Up to 8 IPSec, 8 OpenVPN, 8 L2TP and 8 PPTP tunnels |
| Firewall | Stateful firewall and security attack defense |
| Security Features | ACL, IP-MAC binding, MAC filtering, session limits and attack protection |
| Attack Protection | Protection against SYN Flood, Smurf, Fraggle, Land, Teardrop and malformed packet attacks |
Network Management |
|
| Management | Ruijie Cloud, Reyee App and Web Management |
| Reyee Mesh | Supported |
| VLAN | Multiple VLANs with IEEE 802.1Q support |
| Routing | Static Routing, Policy-Based Routing (PBR), RIP and WAN Load Balancing |
| DHCP | DHCP Server and DHCP Client |
| DDNS | Ruijie DDNS, DynDNS and No-IP |
| Cloud Management | Remote monitoring, maintenance, firmware upgrade and configuration management |
Hardware |
|
| Processor | Dual-Core 880 MHz |
| RAM | 256 MB DDR3 |
| Flash Memory | 32 MB SPI NOR Flash |
| Cooling | Fanless, natural cooling |
Physical and Environmental |
|
| Power Supply | DC 12V / 1.5A |
| Maximum Power Consumption | 15 W |
| Dimensions | 120 × 28 × 120 mm |
| Weight | 0.251 kg |
| Installation | Desktop or Wall Mount |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 5% to 95% RH, non-condensing |
| IP Rating | IP30 |
Note: The Ruijie Reyee RG-EG105GW(T) is an all-in-one Wi-Fi 5 business router designed for small offices, retail stores, restaurants, hotels and similar environments. It combines dual-band wireless connectivity, Gigabit Ethernet, multi-WAN load balancing, VPN, VLAN, firewall and cloud management in a compact device. The router provides up to 1266 Mbps combined wireless speed, with 400 Mbps on 2.4 GHz and 866 Mbps on 5 GHz. It also supports Reyee Mesh, remote management through Ruijie Cloud and Reyee App, and up to four WAN connections for load balancing and failover. :contentReference[oaicite:1]{index=1}
