| Features |
Description |
| Device Type |
Wi-Fi 6 AX6000 High-Density Multi-Gigabit Ceiling Access Point |
| Wireless Standard |
Wi-Fi 6 (IEEE 802.11ax), backward compatible with IEEE 802.11a/b/g/n/ac |
| Max. Wireless Speed |
Up to 5950 Mbps Total Throughput (2.4 GHz: 1147 Mbps, 5 GHz: 4803 Mbps) |
| Antenna Type |
Built-in Omnidirectional Antennas (2.4 GHz: 4, 5 GHz: 4) |
| Spatial Streams / MIMO |
Dual-Radio, 8 Spatial Streams (2.4 GHz: 4×4 MU-MIMO, 5 GHz: 4×4 MU-MIMO) |
| Network Interfaces |
2 x 10/100/1000/2500BASE-T Ports |
| Power Supply Options |
PoE+ / PoE++ or 48V / 1A DC Power Adapter |
| Maximum Power Consumption |
40 W |
| Application |
High-Density Indoor Environments such as Hotels, Restaurants, Shopping Malls, Meeting Rooms, and Railway Stations |
| WIRELESS FEATURES |
Description |
| Maximum Client Capacity |
Up to 512 Associated Clients |
| 2.4 GHz Radio |
4×4 MU-MIMO, up to 1147 Mbps |
| 5 GHz Radio |
4×4 MU-MIMO, up to 4803 Mbps |
| 6 GHz Support |
Not Supported |
| Reyee Mesh |
Supported for wireless AP expansion without additional cabling |
| OFDMA |
Supported |
| MU-MIMO |
Supported |
| SMART FEATURES |
Description |
| High-Density Wi-Fi |
Designed to support over 500 client connections with high-density wireless performance |
| Dual 2.5GbE Uplink |
Two 2.5GbE ports provide up to 5 Gbps total wired uplink capacity |
| Reyee Mesh Technology |
Enables wireless bridging and easy deployment of additional access points |
| Cloud Management |
Supports centralized management, remote monitoring, maintenance, and scenario-based configuration through Ruijie Cloud |
| Self-Organizing Network |
Supports SON for simplified network deployment and management |
| Captive Portal |
Supports standalone captive portal authentication |
| GENERAL |
Description |
| Dimensions |
230 mm x 230 mm x 49.5 mm (excluding mounting bracket) |
| Weight |
≤ 1.36 kg (without packaging materials) |
| Color |
White |
| Mounting |
Ceiling / Wall Mount |
| Operating Temperature |
0°C to 40°C |
| Operating Humidity |
10% to 90% RH, non-condensing |
| IP Rating |
Not Rated |
| Maximum Managed Devices |
Up to 300 Devices |
| IPv6 |
Supported |

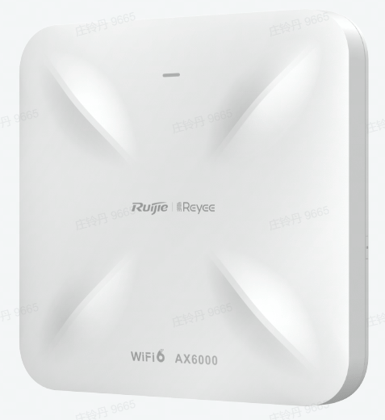

Note: The Ruijie Reyee RG-RAP2260(H) is a high-density Wi-Fi 6 AX6000 ceiling access point delivering up to 5950 Mbps total wireless throughput. It features 4×4 MU-MIMO on both 2.4 GHz and 5 GHz bands and dual 2.5GbE network ports.
Important: The RG-RAP2260(H) supports PoE+ / PoE++ or a 48V DC power adapter, with a maximum power consumption of 40 W. It also supports Reyee Mesh, Ruijie Cloud management, SON, and standalone captive portal authentication.
